| Cycle time | Maximum of 5 seconds | ||
| Electrical connection | 100, 115 or 230 V | 50/60 Hz | 120 VA | ||
| Dimensions (W × H × D) | 241 × 230 × 640 mm (9.5 × 9.1 × 25.2 in.) | ||
| Weight | About 20 kg (44 lbs) | ||
| CE conformity | Complies with the EC directives on machine safety | ||
| and electromagnetic compatibility | |||
| RoHS | Complies with the Restriction of | ||
| Hazardous Substances Directive (RoHS) | |||
| In case of doubt, we recommend that you have samples made of the conductors before making | |||
| a purchase. | |||
| Models and processing range | |||

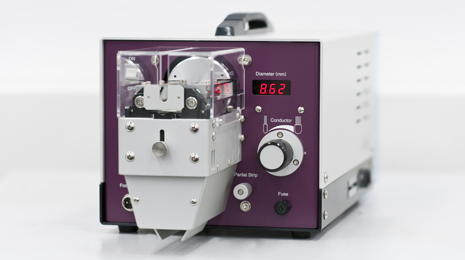

| Desheathing machine | 60R | 60R-W | 60R-L |
| Outside diameter of the conductor | 2.5 – 10 mm (0.1 – 0.4 in.) | 11 – 18 mm (0.43 – 0.7 in.) | 2.5 – 10 mm (0.1 – 0.4 in.) |
| Stripping length | 3 – 90 mm (0.12 – 3.54 in.) | 3 – 90 mm (0.12 – 3.54 in.) | 3 – 200 mm (0.12 – 7.9 in.) |

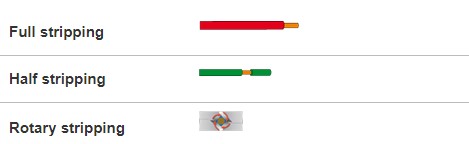

| Stripping lengths with partial strip | 10–50mm (0.4–2in.) | 10–50mm (0.4–2in.) | 10–50mm (0.4–2in.) |
