2044733334

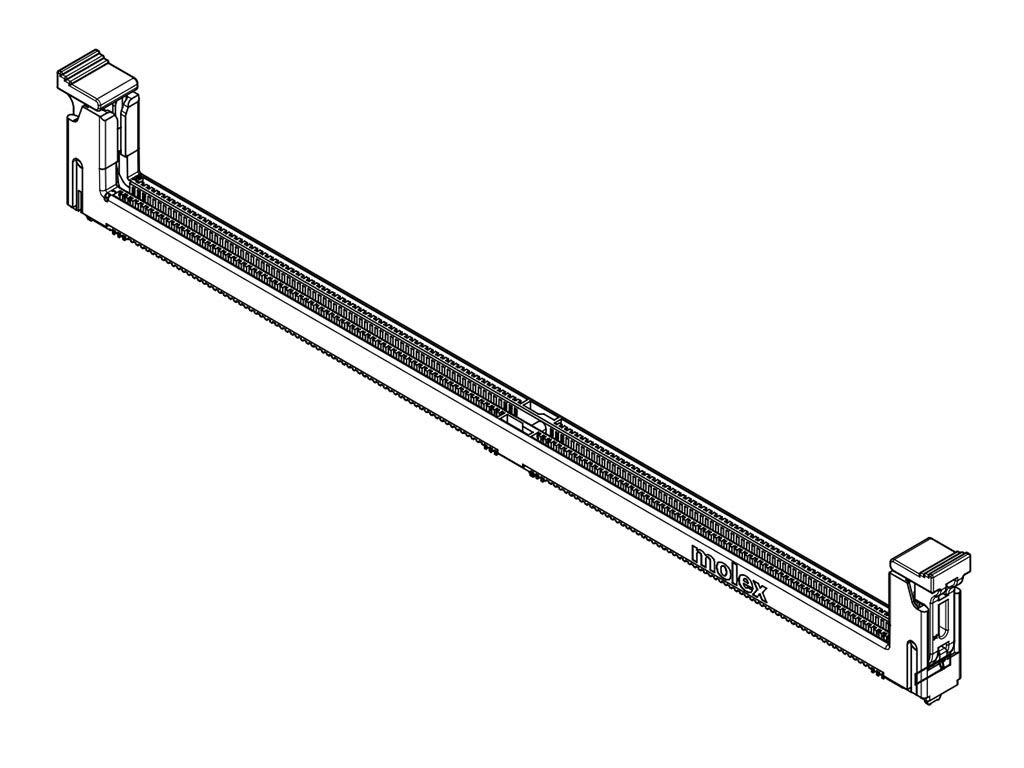

产品描述：: DDR5 DIMM Socket, Vertical Surface Mount, 0.38µm Gold Plating, 288 Circuits, PCB Thickness 1.57mm to 3.18mm, Blue Housing, Blue Latch, with Pick and Place Tape

TE	2044733334
分类	连接器
类型	Memory Module Sockets
品牌	莫仕(Molex)
Status	Active
描述	DDR5 DIMM Socket, Vertical Surface Mount, 0.38µm Gold Plating, 288 Circuits, PCB Thickness 1.57mm to 3.18mm, Blue Housing, Blue Latch, with Pick and Place Tape
Series	204473
Overview	DDR5 DIMM Socket
UPC	193264878970
孔位数	288.0
颜色	Blue
Circuits (Loaded)	288
Material - Metal	Copper Alloy
Material - Plating Mating	Gold
Material - Plating Termination	Tin
Material - Resin	High Temperature Polyamide
Net Weight	6.620/g
Packaging Type	Tray
Pitch - Mating Interface	0.85mm
Plating min - Mating	0.380µm
Plating min - Termination	2.540µm
Termination Interface: Style	Surface Mount
