905841326

905841326

类  型:
连接器
品  牌:
莫仕(Molex)
颜  色:
Natural
产品描述:

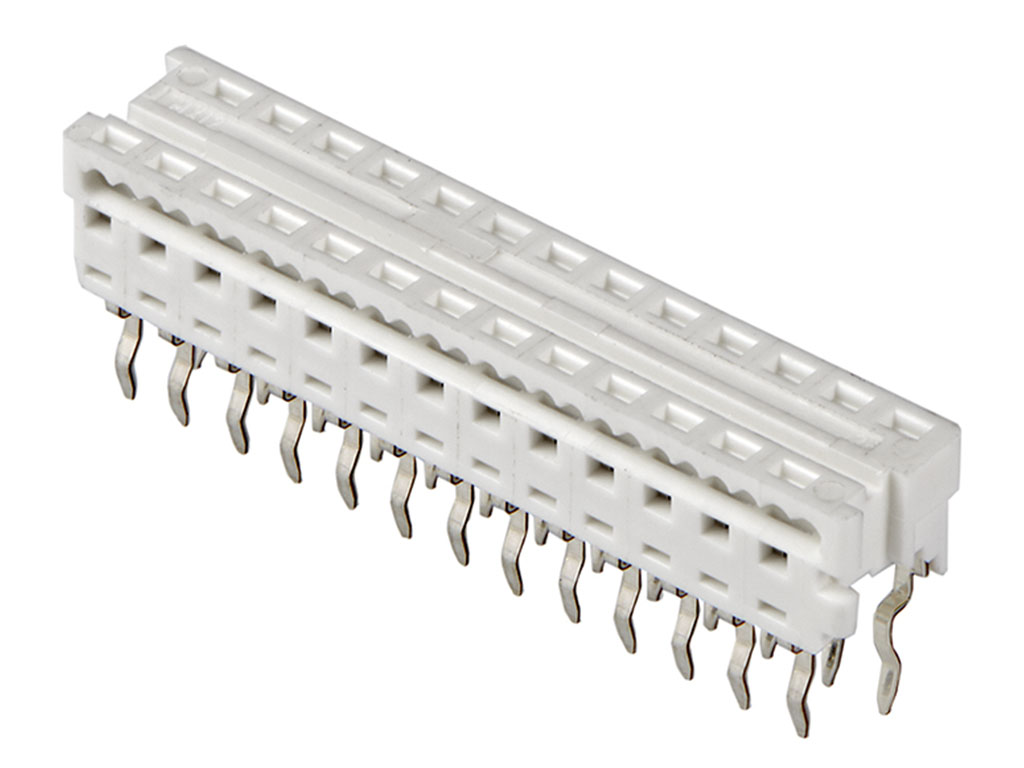

1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-in, 26 Circuits
TE 905841326
分类 连接器
类型 Ribbon Cable / Wire Trap Connectors
品牌 莫仕(Molex)
Status Active
描述 1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-in, 26 Circuits
Series 90584
Overview Picoflex Ribbon-Cable Connectors
UPC 800753661790
孔位数 26.0
颜色 Natural
Circuits (Loaded) 26
Lock to Mating Part None
Material - Metal Phosphor Bronze
Material - Plating Mating Tin
Material - Plating Termination Tin
Material - Resin Polyester
Net Weight 1.583/g
Number of Rows 2
Packaging Type Tube
Pitch - Mating Interface 1.27mm
Plating min - Mating 2.032µm
Plating min - Termination 2.032µm
Termination Interface: Style Through Hole - Kinked Pin
Wire Insulation Diameter 1.00mm max.
Wire Size AWG 26, 28
Wire/Cable Type Ribbon Cable
