| TE | 2005064006 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |

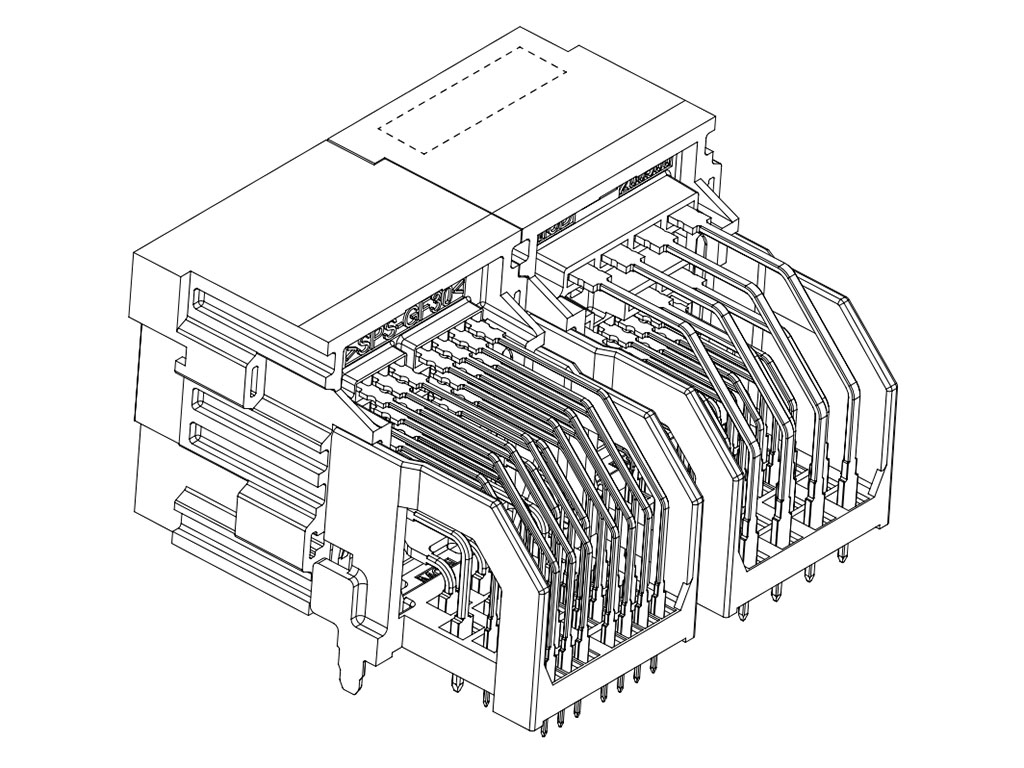

| 描述 | stAK50h 4 Bay Right-Angle Hybrid Header, 109 Circuits, Bay A 25 Circuit Header, Key 3, Black; Bay B 28 Circuit Header, Key 1, Dark Gray; Bay C 28 Circuit Header, Key 2, Green; Bay D 28 Circuit Header, Key 3, Gray; Tube |
| Series | 200506 |
| Application | Automotive, Power, Signal, Wire-to-Board |
| Overview | stAK50h Connection System |
| UPC | 193264428946 |
| 孔位数 | 109.0 |
| 颜色 | Gray, Gray (Dark), Green |
| Circuits (Loaded) | 109 |
| Lock to Mating Part | Yes |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Material - Resin | SPS |
| Net Weight | 42.400/g |
| Number of Rows | 5 |
| Packaging Type | Tube |
| Pitch - Mating Interface | 2.00mm, 3.20mm, 4.00mm, 7.20mm |
| Termination Interface: Style | Through Hole |
