230119
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 230119 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 230119 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 230119 阿雷蒙 |

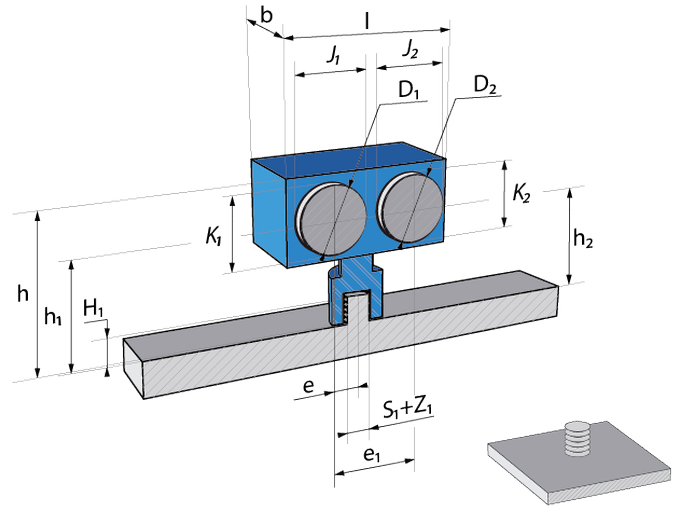

b - Width | 16 |
e - Mounting axle to furthest housing center | 10.6 |
h - Height | 18.5 |
h1 - Height | 9.2 |
l - Length | 34.7 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 9.8-10.4 |
e1 - Center to Center distance | 22.9 |
D2 - Tube or Cable Diameter | 4.68-4.84 |
J1 - Width of housing | 12.5 |
J2 - Width of housing | 10 |
K1 - Height of housing | 13.5 |
K2 - Height of housing | 8.5 |
S1 - Screw Specification | T5 Stud |
h2 - Height | 9.2 |
J1xK1 - Width of housing x Height of housing | 12.5 x 13.5 |
J2xK2 - Width of housing x Height of housing | 10 x 8.5 |
