229504
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 229504 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 229504 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 229504 阿雷蒙 |

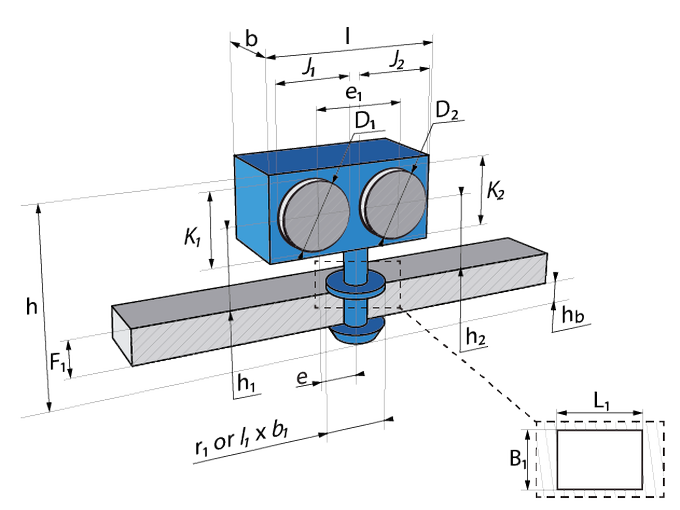

b - Width | 61.5 |
b1 - Width | 23 |
e - Mounting axle to furthest housing center | 21.3 |
h - Height | 37.6 |
hb - Height below support | 14 |
l - Length | 85 |
l1 - Length | 23 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 4-15 |
F1 - Thickness | 1-1.2 |
e1 - Center to Center distance | 36.8 |
D2 - Tube or Cable Diameter | 7 |
l1xb1 - Length x Width | 23 x 23 |
L1 - Hole Length | 10.3-10.7 |
B1 - Hole Width | 9.8-10.2 |
L1xB1 - Hole Length x Hole Width | 10.3-10.7 x 9.8-10.2 |
