229022
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 229022 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 229022 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 229022 阿雷蒙 |

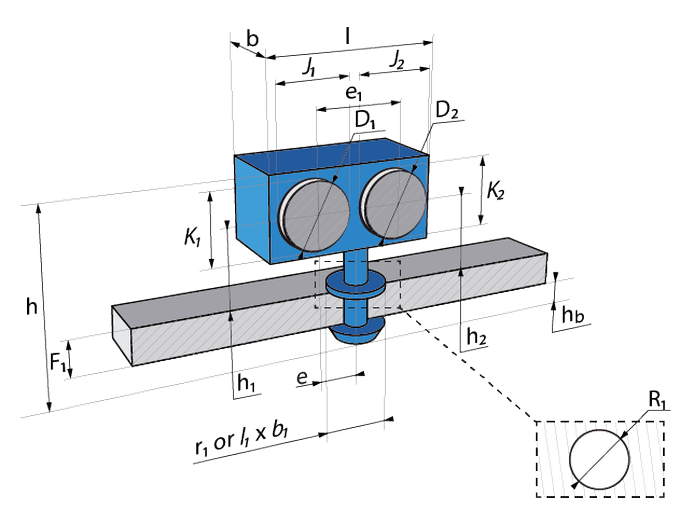

b - Width | 20 |
b1 - Width | 7.5 |
e - Mounting axle to furthest housing center | 10.5 |
h - Height | 25.1 |
h1 - Height | 7.6 |
hb - Height below support | 10 |
l - Length | 30.1 |
l1 - Length | 7.5 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 5.19-5.28 |
F1 - Thickness | 1.25-1.85 |
R1 - Hole Diameter | 6.1-6.6 |
e1 - Center to Center distance | 5.25 |
D2 - Tube or Cable Diameter | 5.19-5.28 |
J1 - Width of housing | 5.19-5.28 |
J2 - Width of housing | 5.19-5.28 |
K1 - Height of housing | 5.19-5.28 |
K2 - Height of housing | 5.19-5.28 |
h2 - Height | 7.6 |
l1xb1 - Length x Width | 7.5 x 7.5 |
J1xK1 - Width of housing x Height of housing | 5.19-5.28 x 5.19-5.28 |
J2xK2 - Width of housing x Height of housing | 5.19-5.28 x 5.19-5.28 |
