226077
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 226077 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 226077 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 226077 阿雷蒙 |

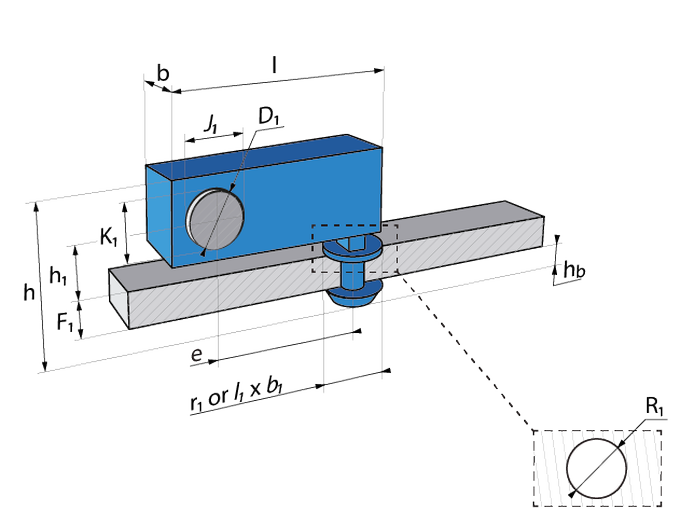

b - Width | 15 |
b1 - Width | 10.5 |
e - Mounting axle to furthest housing center | 29.1 |
h - Height | 48.1 |
h1 - Height | 19.8 |
hb - Height below support | 17.3 |
l - Length | 52.6 |
l1 - Length | 10.5 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 14.55-14.85 |
F1 - Thickness | 1.55-1.85 |
R1 - Hole Diameter | 8.7-9.2 |
J1 - Width of housing | 14.55-14.85 |
K1 - Height of housing | 14.55-14.85 |
l1xb1 - Length x Width | 10.5 x 10.5 |
J1xK1 - Width of housing x Height of housing | 14.55-14.85 x 14.55-14.85 |
