225050
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 225050 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 225050 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 225050 阿雷蒙 |

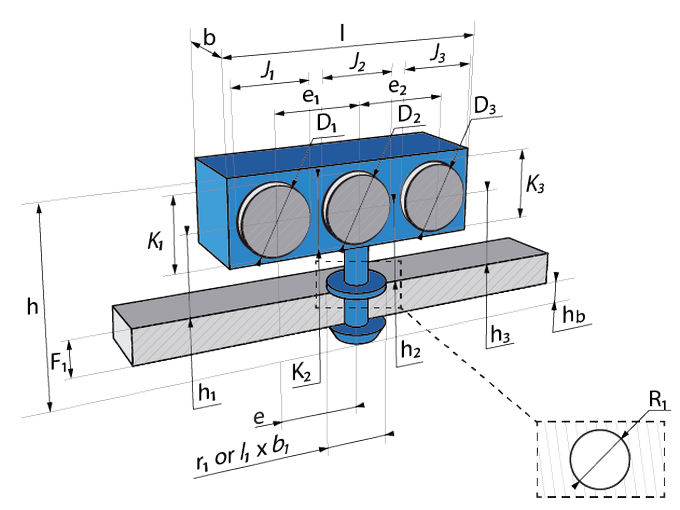

b - Width | 12 |
e - Mounting axle to furthest housing center | 10.2 |
h - Height | 50.5 |
h1 - Height | 15.2 |
hb - Height below support | 6.4 |
l - Length | 62.5 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 5.2 |
F1 - Thickness | 2 |
R1 - Hole Diameter | 8 |
e1 - Center to Center distance | 12 |
D2 - Tube or Cable Diameter | 5.2 |
J1 - Width of housing | 5.4 |
J2 - Width of housing | 5.4 |
h2 - Height | 27.2 |
e2 - Center to Center distance | 12 |
h3 - Height | 39.2 |
D3 - Tube or Cable Diameter | 5.2 |
J3 - Width of housing | 5.4 |
