221562
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 221562 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 221562 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 221562 阿雷蒙 |

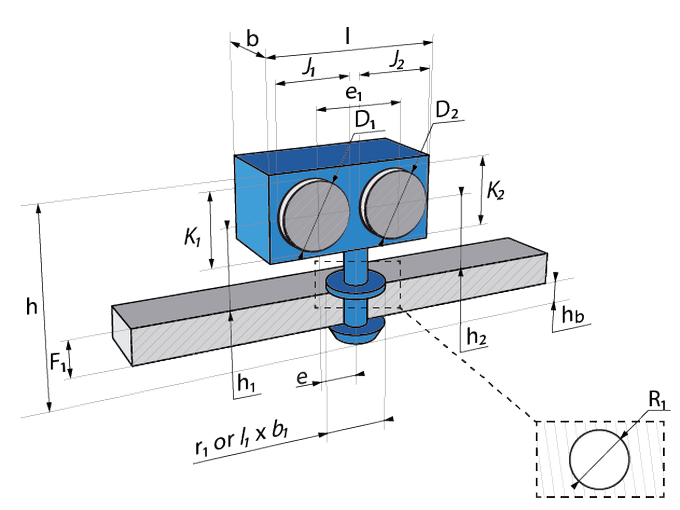

b - Width | 21 |
e - Mounting axle to furthest housing center | 0 |
h - Height | 49 |
h1 - Height | 31.7 |
hb - Height below support | 6.5 |
l - Length | 21 |
lxb - Length x Width | - |
r1 - Contact Diameter | 21 |
D1 - Tube or Cable Diameter | 8 |
F1 - Thickness | 2-3 |
R1 - Hole Diameter | 6.58-6.8 |
e1 - Center to Center distance | 18 |
D2 - Tube or Cable Diameter | 8 |
J1 - Width of housing | 7-8 |
J2 - Width of housing | 7-8 |
h2 - Height | 17.4 |
