205524
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 205524 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 205524 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 205524 阿雷蒙 |

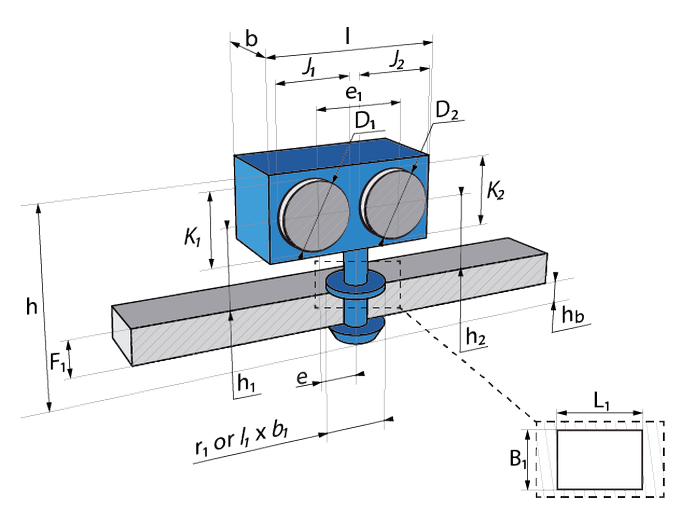

b - Width | 20 |
b1 - Width | 21.8 |
e - Mounting axle to furthest housing center | 9 |
h - Height | 37.6 |
h1 - Height | 16 |
hb - Height below support | 12 |
l - Length | 42 |
l1 - Length | 14 |
lxb - Length x Width | - |
r1 - Contact Diameter | 29 |
D1 - Tube or Cable Diameter | 16 |
F1 - Thickness | 2 |
e1 - Center to Center distance | 18 |
D2 - Tube or Cable Diameter | 10 |
J1 - Width of housing | 18.7 |
J2 - Width of housing | 23.3 |
K1 - Height of housing | 12 |
K2 - Height of housing | 20 |
h2 - Height | 16 |
l1xb1 - Length x Width | 14 x 21.8 |
L1 - Hole Length | 21 |
J1xK1 - Width of housing x Height of housing | 18.7 x 12 |
J2xK2 - Width of housing x Height of housing | 23.3 x 20 |
B1 - Hole Width | 20 |
L1xB1 - Hole Length x Hole Width | 21 x 20 |
