201513
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 201513 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 201513 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 201513 阿雷蒙 |

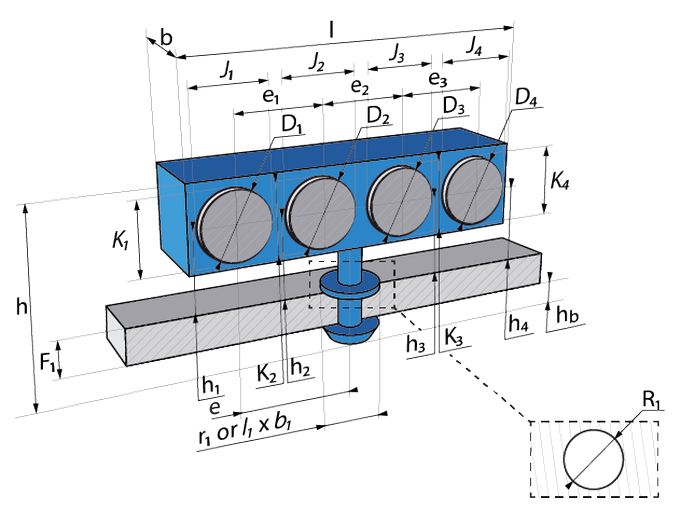

b - Width | 20.5 |
e - Mounting axle to furthest housing center | 48.7 |
h - Height | 48.1 |
h1 - Height | 22.8 |
hb - Height below support | 10 |
l - Length | 93.8 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 6-10 |
F1 - Thickness | 0.8-6 |
R1 - Hole Diameter | 6.5-6.7 |
e1 - Center to Center distance | 22.5 |
D2 - Tube or Cable Diameter | 14-16 |
h2 - Height | 22.8 |
e2 - Center to Center distance | 26.3 |
h3 - Height | 22.8 |
D3 - Tube or Cable Diameter | 16-18 |
