56550
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 056550 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 56550 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 056550 阿雷蒙 |

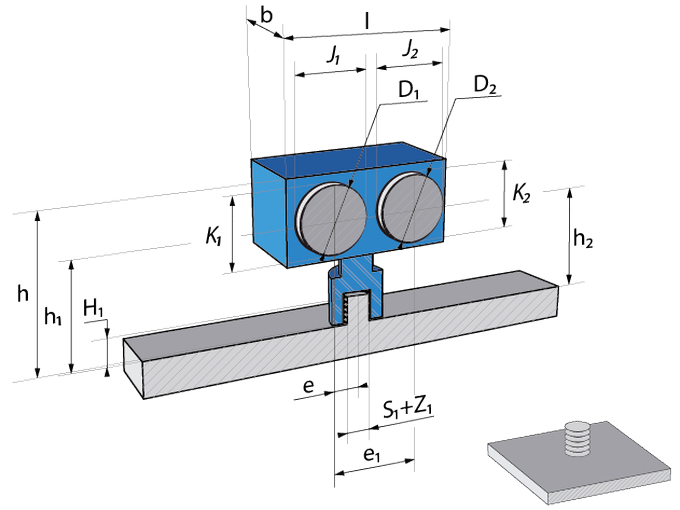

b - Width | 21 |
e - Mounting axle to furthest housing center | 25 |
h - Height | 23 |
h1 - Height | 8 |
l - Length | 80 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 1-14 |
e1 - Center to Center distance | 50 |
D2 - Tube or Cable Diameter | 1-14 |
J1 - Width of housing | 30 |
J2 - Width of housing | 30 |
K1 - Height of housing | 13 |
K2 - Height of housing | 13 |
S1 - Screw Specification | T5 Stud |
h2 - Height | 8 |
H1 - Support height | 9-14 |
Z1 - Stud Size | 5 |
J1xK1 - Width of housing x Height of housing | 30 x 13 |
J2xK2 - Width of housing x Height of housing | 30 x 13 |
