55591
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 055591 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 55591 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 055591 阿雷蒙 |

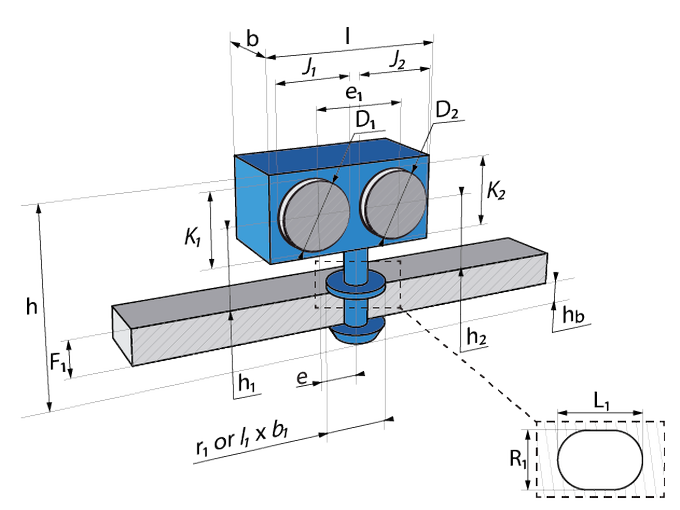

b - Width | 26 |
e - Mounting axle to furthest housing center | 9 |
h - Height | 27 |
h1 - Height | 11 |
hb - Height below support | 7.5 |
l - Length | 41.5 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 13.3-15.3 |
F1 - Thickness | 0.5-4 |
R1 - Hole Diameter | 6.2 |
e1 - Center to Center distance | 18 |
D2 - Tube or Cable Diameter | 13.3-15.3 |
h2 - Height | 11 |
L1 - Hole Length | 12.2 |
L1xR1 - Hole Length x Hole Diameter | 12.2 x 6.2 |
R1xL1 - Hole Diameter x Hole Length | 6.2 x 12.2 |
