19187
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 019187 阿雷蒙
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | 19187 |
分类 | 紧固件 |
品牌 | 阿雷蒙(ARaymond) |
类型 | CABLE & TUBE FASTENERS |
描述 | 019187 阿雷蒙 |

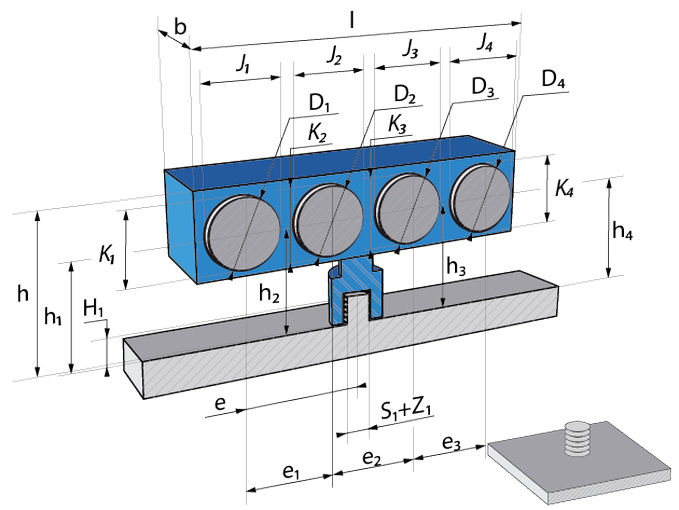

b - Width | 15 |
e - Mounting axle to furthest housing center | 26.5 |
h - Height | 19.6 |
h1 - Height | 14.5 |
l - Length | 64.1 |
lxb - Length x Width | - |
D1 - Tube or Cable Diameter | 8 |
e1 - Center to Center distance | 15.25 |
D2 - Tube or Cable Diameter | 16 |
S1 - Screw Specification | T5 Stud |
h2 - Height | 13.5 |
e2 - Center to Center distance | 21.5 |
h3 - Height | 14.5 |
D3 - Tube or Cable Diameter | 10 |
H1 - Support height | 14.2 |
