16037
- 类 型:
- 紧固件
- 品 牌:
- 阿雷蒙(ARaymond)
- 颜 色:
- 产品描述:
- 016037 阿雷蒙
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 16037 |
| 分类 | 紧固件 |
| 品牌 | 阿雷蒙(ARaymond) |
| 类型 | CABLE & TUBE FASTENERS |
| 描述 | 016037 阿雷蒙 |

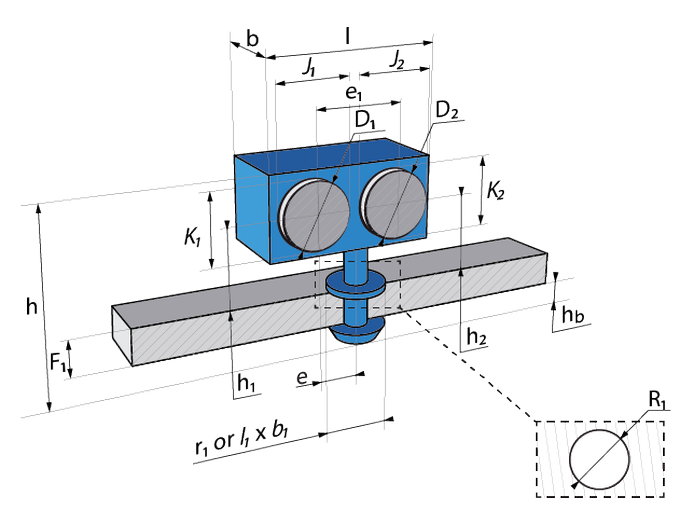

| b - Width | 10 |
| e - Mounting axle to furthest housing center | 7 |
| h - Height | 16.5 |
| h1 - Height | 4.5 |
| hb - Height below support | 4-5 |
| l - Length | 22.4 |
| lxb - Length x Width | - |
| D1 - Tube or Cable Diameter | 5 |
| F1 - Thickness | 1-2 |
| R1 - Hole Diameter | 6.5-6.7 |
| e1 - Center to Center distance | 14 |
| D2 - Tube or Cable Diameter | 5 |
| h2 - Height | 4.5 |
