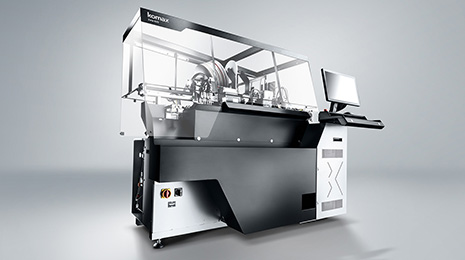

Zeta 620

产品描述：: 紧凑的全自动 Zeta 620 线材加工机可在最狭窄的空间内生成完整的零件清单并存储分类和标记的线材。久经考验的 Zeta 技术和有吸引力的模块选项可显着简化生产并确保显着节省时间和成本。利用这一低成本的自动化切入点，确保现在和未来的显着竞争优势。

Technical data Zeta 620
Outer wire diameter	Max. 6 mm (0.24 in)
Wire cross-sections	0.5 – 6 mm² (AWG 20–10)
Wire length tolerance	±0.5% + 2 mm (0.079 in)
Wire length range for double-sidedprocessing	240 mm to 4 m (9.44 in to 13.1 ft)
Wire length range for one-sidedprocessing	60 mm to 4 m (2.36 in to 13.1 ft)
Wire changer	Maximum 24
Strip length	Up to 25 mm (0.98 in)
Number of stations	2
Piece output, AEH – AEH	360 pcs/h
Piece output, stripped on both sides	700 pcs/h
Weight	Approx. 700 kg


Module combinations
Station 1	Station 2
CM F20	CM F20
	AEH-LS
	CM 1/5
AEH-LS	CM F20
	AEH-LS
	CM 1/5
M1650 Tube	M1650 Tube
	CM F20
	AEH-LS
	CM 1/5
CM04 Duo	CM F20


Technical data CM F20
Cross-section range	0.5 – 2.5 mm² (AWG 20–14)
Ferrules	Z+F ferrules on rolls,
	0.5 – 2.5 mm² (AWG 20–14)
	Type: N,HL (standard) / S-N,S-HL (Multinorm, AWG)
Ferrule length	8 mm or 10 mm
Crimp form	Trapezoid crimp form
Operating pressure	5 – 6 bar
Dimensions (W×D×H)	205 × 397 × 491 mm without castors
	283 × 460 × 635 mm with castors
Weight	26.5 kg

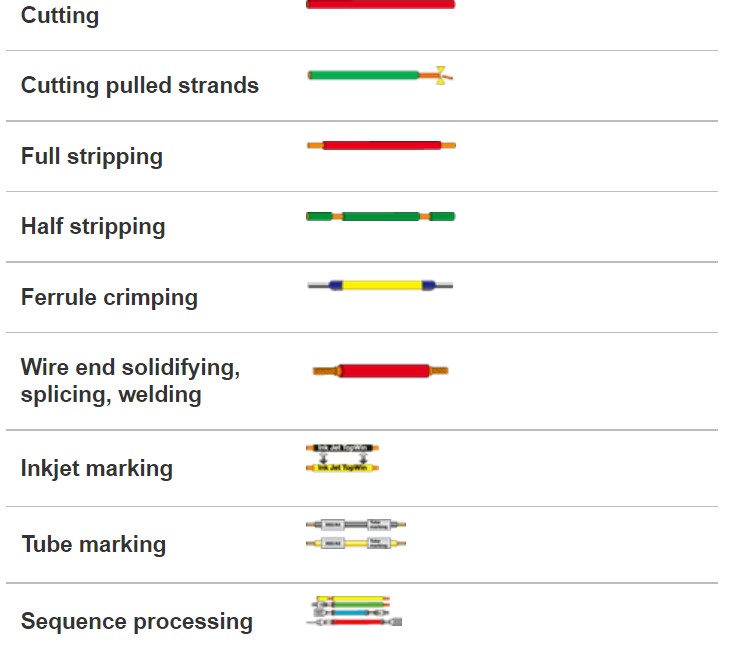

屏幕截图 2022-09-20 101224.jpg
