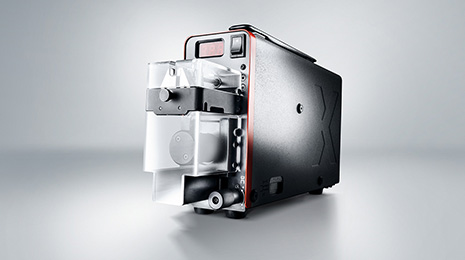

Mira 32

产品描述：: Mira 32 电线剥线钳是手工具不再满足要求时半自动电线加工的理想入门级型号。它专为汽车和工业领域使用的电线而设计，可以使用V型刀片剥离。带有设置刻度盘的机器可以加工外径达 4 mm、带材长度达 25 mm 的引线。多芯电缆的单芯线和内线可以通过全部或部分剥离进行处理。

Conductor cross-section1	0.03 – 3.3 mm² (AWG 32 – 12)
Conductor diameter1	0.2 – 3 mm (0.008 – 0.12 in.)
Outer diameter1	0.6 – 4 mm (0.02 – 0.16 in.)
Strip length	1 – 25 mm (0.04 – 1 in.)
Pull-off length	2 – 25 mm (0.08 – 1 in.)
Resolution of the incision diameter display	0.01 mm (0.0004 in.)
Min. breakout length	With standard grippers: 14 mm (0.55 in.)
	With thin grippers: 11 mm (0.44 in.)
	With option shirt breakout length: 6.6 mm (0.26 in.)
Blade type	Universal V-Blade
Trigger	Sensor, optional foot pedal
Gripper force	Mechanically adjustable
Typical cycle time	~ 0.3 s
Electrical connection	50/60 Hz, 100 – 240 V AC, 40 VA
Compressed air connection (air jet for cleaning)	5 – 7 bar
Ambient temperature for operation	5 – 40 °C
Dimensions (W × H × D)	81 × 191 × 352 mm (3.19 × 7.52 × 13.86 in.)
Weight	4.5 kg (10 lb.)
CE conformity	Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
1) We recommend using sampling for wires that are difficult to process and wires at the limits of the specifications.


Options and accessories
Flat grippers, diamond coated	Avoids gripper marks, for ex. for zero-halogen leads
Flat and thin grippers	For breakout length up to 11 mm (0.44 in.)
Option short breakout-length	For breakout length up to 6.6 mm (0.26 in.)
Foot pedal switch Mira	Instead of using the cable trigger sensor
Air jet	For cleaning
