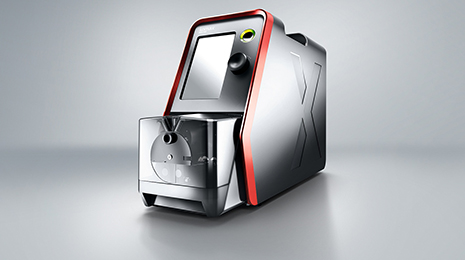

Mira 340/340 Q

类　　型：: 剪剥设备

品　　牌：: komax

颜　　色：: 其他

产品描述：: 可编程 Mira 340 和 340 Q 专为通用而设计，同时保持了最高的精度。它们非常适合加工具有苛刻要求的电线和绝缘材料。带有4X刀片的旋转头提供独特的功能，旨在缩短生产时间并提高质量。获得专利的ACD切口监测可避免导体损坏，并符合汽车或航空航天工业的要求。因此，一台机器可用于广泛的应用。由于顺序处理，可以快速处理多导体电缆和多层绝缘材料，从而节省时间。同时，它的易用性也提高了生产率。

Conductor cross section (stripping)	0.013 – 16 mm² (AWG 36 – 5*)
Conductor cross section (twisting)	0.14 – 2.5 mm² (AWG 26 – 13)
Max. conductor cross section for cutting	2 mm² (AWG 14 / OD 1.6 mm)
Max. outer diameter (OD)	8 mm (0.315 in.)
Strip length (StrL)	OD
	OD = 7.5 – 8 mm (0.29 in. – 0.31 in.) 0.01 – 50.8 mm (0.0004 – 2.0 in.)

Strip length with cutting and single trigger mode	Mira 340: 32 mm (1.26 in.) - CL
	Mira 340 Q: 29 mm (1.14 in.) - CL
Cut length (CL)	Mira 340: 32 mm (1.26 in.) - StrL,
	Mira 340 Q: 29 mm (1.14 in.) - StrL
Pull-off length	Mira 340: 0.01 – 32 mm (0.0004 – 1.26 in.)
	Mira 340 Q: 0.01 – 29 mm (0.0004 – 1.14 in.)
Min. breakout length	StrL + 12 mm
Increments for incision diameter	0.01 mm (0.0004 in.)
Increment for strip length	0.1 mm (0.004 in.)
Min. insertion depth	Mira 340 12 mm (0.47 in.)
	Mira 340 Q 15 mm (0.59 in.)
Gripper force	programmable
Blade type	Rotary 4X-blades
Trigger	Sensor, touchscreen, optional foot pedal
Data interface	USB port for data backup, barcode scanner
Article library: Max. number of articles	3000
Sequence function: Max. number of steps	100
Sequence library: Max. number of entries	1000
Incision monitoring	ACD (Automatic Conductor Detector) for Mira 230 Q, patented
Typical cycle time	~ 2.3 s
Electrical connection	50/60 Hz, 100 – 240 V AC,
Compressed air connection (air jet for cleaning)	5 – 7 bar
User interface	5“ color touch screen, multi-touch function + dial
Switch-on time from standby mode
Ambient temperature for operation	5 – 40 °C
Dimensions (W × H × D)	141 × 290 × 473 mm (5.6 × 11.4 × 18.6 in.))
Weight	11 kg (24 lbs.)
CE conformity	Conforms to the CE directives on machine safety and electromagnetic compatibility.
* We recommend using sampling for wires that are difficult to process and wires at the limits of the specifications.

Options and accessories
V-shaped diamond coated grippers	Prevents rotation of the wire in the gripper
Flat diamond coated grippers	Non marking, e.g. for halogen free leads
Flat thin diamond coated grippers	For shorter inner wires in multi-core cables
	Breakout length: StrL + 8 mm (0.31 in.)
Wire feeding guide and holder	For wire diameters from 0.5 to 3 mm (0.02 - 0.12 in.)
Foot pedal switch Mira	Instead of using the cable trigger sensor

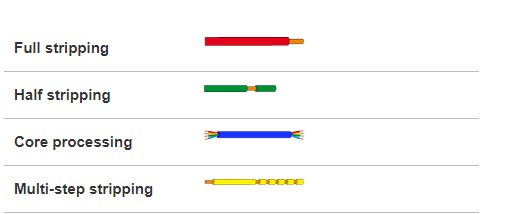

屏幕截图 2022-09-20 164316.jpg
