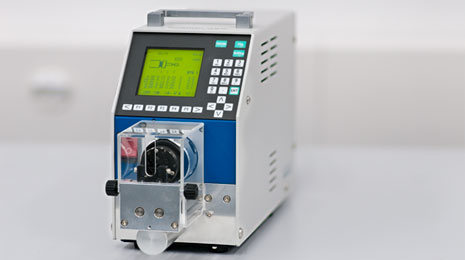

Cosmic 42R

产品描述：: The Cosmic 42R is the precision machine for multi-layered stripping of micro-coaxial cables. This stripping machine processes the finest conductors with speed and precision. Multi-step stripping involving up to 9 steps is part of the performance capabilities of the Cosmic 42R, as is its memory that accommodates 1000 data records.

Outside diameter of	Approx. 0.5 mm – 2 mm	0.012 in. – 0.08 in.
the conductor (coaxial)
Conductor cross section	0.005 mm² – 1.5 mm²	AWG44 – 16
(discrete conductor)
Minimum diameter of	0.05 mm	0.002 in.
inner conductors
Resolution diameter	0.01 mm	0.0004 in.
Maximum pull-off length	40 mm	1.6 in.
Increment of pull-off length	0.01mm	0.0004 in.
Maximum stripping steps	9
Cycle time	6 seconds
Production rate	Approx. 600 pcs/h
	(depending on conductor and programming)
Database capacity	1000 programs
Gripper force	Adjustable in 10 increments
Electrical connection	1 × 100 – 240 V \| 50/60 Hz \| 120 VA
Pneumatic connection	5 – 7 bar	73 – 102 psi
Noise emitted	Type
Dimensions (W × H × D)	140 × 243 × 570 mm	5.5 × 9.6 × 22.4 in.
Weight	9.2 kg	20.3 lbs
CE conformity	Complies with the EC directives on machine safety
	and electromagnetic compatibility
RoHS	Complies with the Restriction of
	Hazardous Substances Directive (RoHS)
In case of doubt, we recommend that you have samples made of the conductors before makinga purchase.
