1928405452
- 类 型:
- 连接器
- 品 牌:
- 博世(Bosch)
- 颜 色:
- 黑色
- 产品描述:

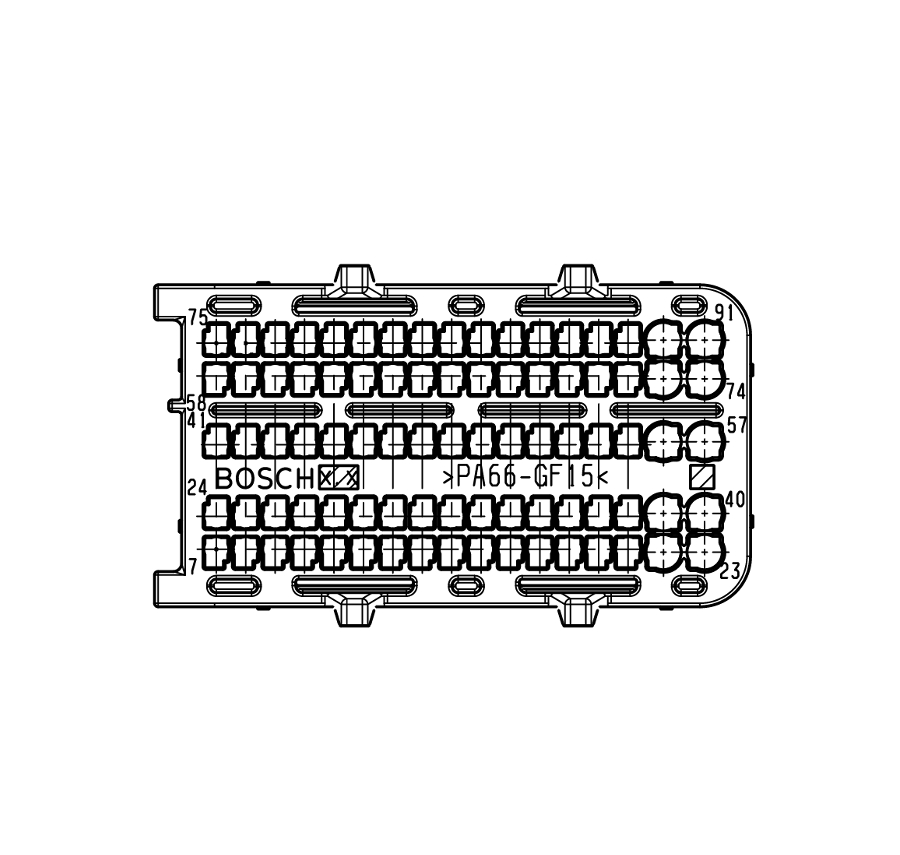

- 196P EMS / Contact Housing 91P / Code 1
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Manufacturer | Bosch |
Packing unit | 189pcs |
Product Type | Contact Housing |
Number of positions | 91 |
Code | 1 |
Blade width | 1.2mm 2.8mm |
Connection System | Wire-to-Device |
Gender | Female |
Sealed connection | Yes |
Primary Locking (Terminal) | Clean body and lance |
Colour | black |
Body Material | PA 66 GF |
Length | 106.6mm |
Width | 48mm |
Height | 36.55mm |
Temperature range, min. | -40° |
Temperature range, max. | 130° |
Terminal Sealing | Single wire and mat seal |
Type of seal (connector) | radial seal |
Type of seal (cable) | single wire seal for BTL 2.8 and Sealing plate for Matrix 1.2 |
Type of locking mechanism (connector) | locking lever / locking slider |
Secondary locking | Yes |
