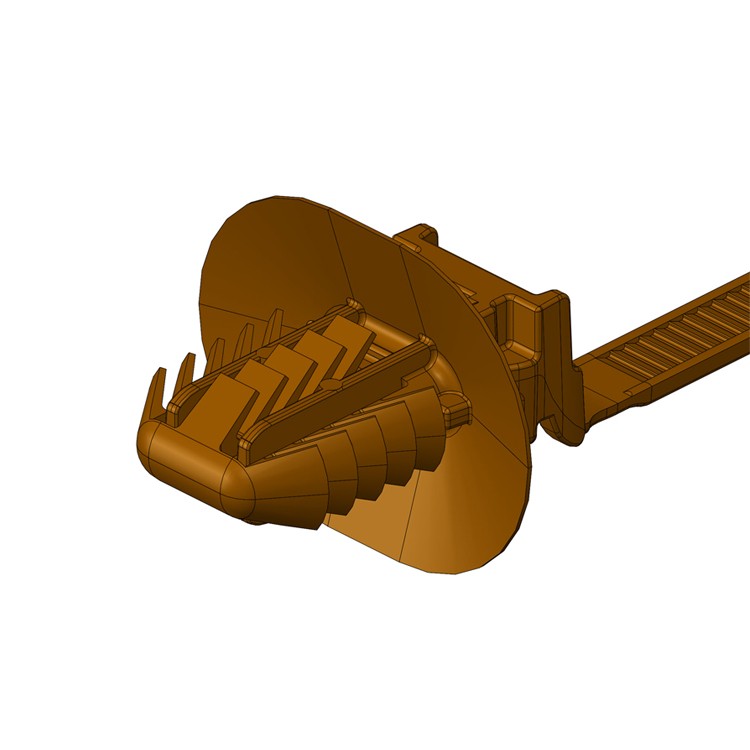

20185-HHBN
- 类 型:
- 紧固件 椭圆/矩形孔 树型
- 品 牌:
- 艾利丹尼森
- 颜 色:
- 棕色
- 产品描述:
- OVAL FIR TREE TIE, HI HEAT
可以搜到:产品、技术、资料、新闻、检测、企业、视频
Attribute |
Specifications |
---|---|
Application | Punched Hole |
Fastener Type | Fir Tree |
Mating Feature | Oval / Rectangle Hole |
Mount Size | Oval Slotted Hole Sizes: 6.2 x 12.2mm 6.5 x 12.5mm 6.5 x 13.0mm 7.0 x 12.0mm |
Bundle Diameter | 0.06 - 1.50" (1.6 - 38.1 mm) |
Maximum Panel Thickness | 0.6 to 7.0 mm |
Operating Temperature | -40 to 150°C / -40 to 302°F |
Material |
Nylon 6/6, Impact Modified, Heat Stabilized |
Resin | PA66 HH |
Color | Brown |
Max. Insertion Force |
10 lbf (44.5 N) |
Min. Retention Force | 25 lbf (111.2 N) |
Min. Loop Tensile Strength |
50 lbf (222.4 N) |
Total Length | 6.97" (177.0 mm) |
Strap Width | .190" (4.83 mm) |
Strap Thickness | .051" (1.30 mm) |
Qty/Bag |
1000 |
