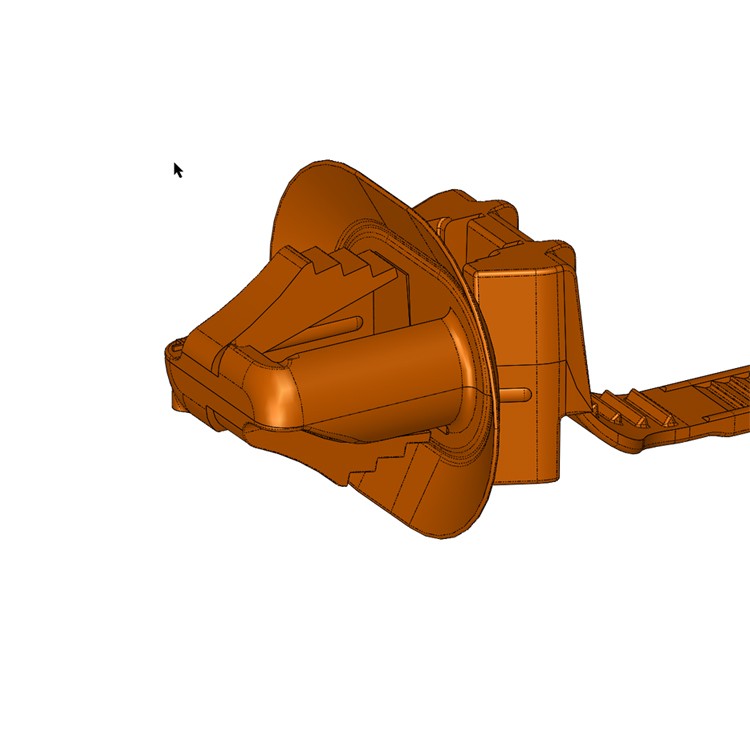

20179-HHBN

类　　型：: 紧固件椭圆/矩形孔 6.2 x 12.2 mm 7 x 12+ mm 艾利丹尼森 <150 40 ≤ 3.6 mm 箭形冲孔棕色 50 lbf. (222 N)

Attribute	Specifications
Application	Punched Hole
Fastener Type	Arrow
Mating Feature	Oval / Rectangle Hole
Mount Size	6.2 x 12.2 mm Slotted Hole 7.0 x 12.0 mm Slotted Hole
Bundle Diameter	0.06 - 1.50" (1.6 - 38.0 mm)
Maximum Panel Thickness	≤ 3.6 mm
Operating Temperature	-40 to 150°C / -40 to 302°F
Resin	PA66 IMHH
Color	Brown
Insertion Force - Typical
Retention Force - Typical	>49.5 lbf (220 N)
Min. Loop Tensile Strength	50 lbf (222 N)
