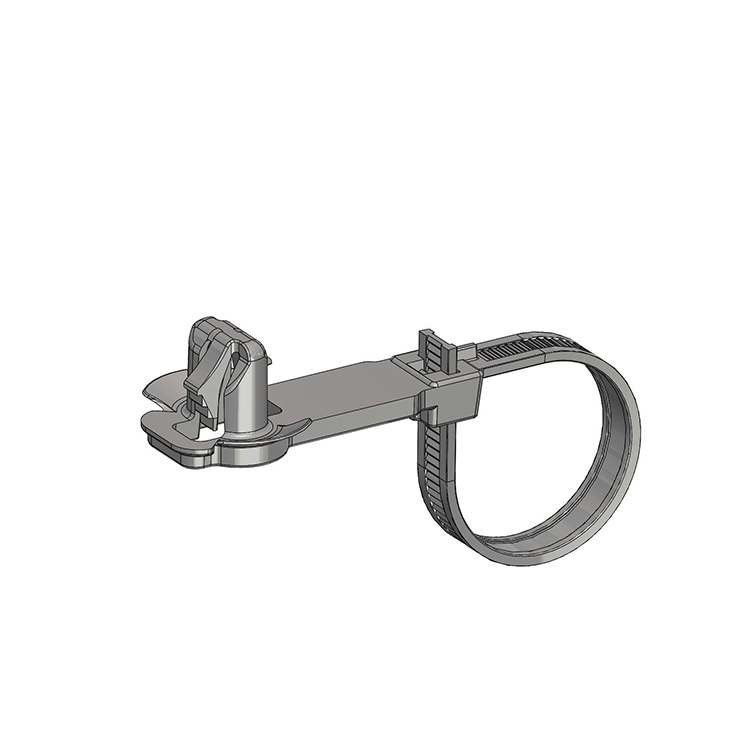

20149-HHBN
- 类 型:
- 紧固件 椭圆/矩形孔 7 x 12+ mm 艾利丹尼森 <150 40 ≤ 3.0 mm 偏置箭头槽式扎带 冲孔 棕色 50 lbf. (222 N)
- 品 牌:
- 艾利丹尼森
- 颜 色:
- 棕色
- 产品描述:
- OFFSET SLOT,35MM,REV High Heat
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

Attribute |
Specifications |
|---|---|
| Application | Punched Hole |
| Fastener Type | Offset Arrow Slot Tie |
| Mating Feature | Oval / Rectangle Hole |
| Mount Size | 7 x 12+mm |
| Bundle Diameter | 0.06 - 1.50" (1.6 - 38.1 mm) |
| Maximum Panel Thickness | ≤ 3.0 mm |
| Operating Temperature | -40 to 150°C / -40 to 302°F |
| Resin | PA66 IMHH |
| Color | Brown |
| Insertion Force (lbf) |
Max. - 10 Typical - 7 |
| Retention Force (lbf) |
Min. - 40 Typical - 50 |
| Min. Loop Tensile Strength |
50 lbf. (222 N) |
