当前位置： 首页>产品>08380-0

08380-0

08380-0

类　　型：: 扎带耐气候/紫外线(Weather/UV Resistant) 0.05 - 0.06" (1.3 - 1.4mm) 0.09 - 0.14" (2.4 - 3.6mm) 艾利丹尼森（AVERY DENNISON） <80 6.00 - 8.00" (152.4 - 203.2mm) 40 lbf. (178 N) Int. 85 黑色

品　　牌：: 艾利丹尼森

颜　　色：: 黑色

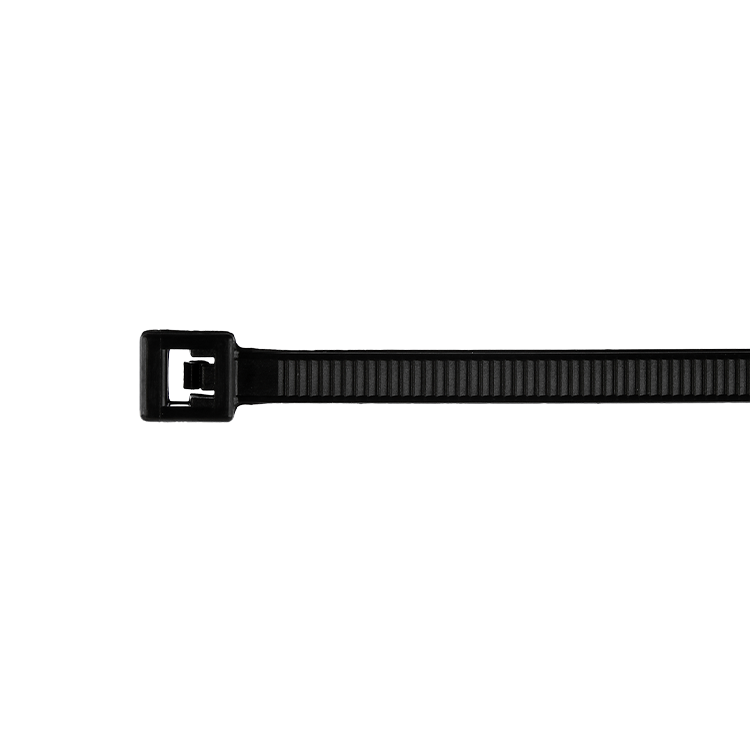

产品描述：: 8" Intermediate Cable Ties

* M = 1000

Part #	Environmental Requirements	Color	Operating Temperature	Quantity Per Bag*
08377-0	General Purpose	Natural	-20 to 70°C / -68 to 158°F	1M
08380-0	Weather/UV Resistant	Black	-40 to 80°C / -40 to 176°F	1M
08385-0	General Purpose	Natural	-40 to 85°C / -40 to 185°F	100
08386-0	Weather/UV Resistant	Black	-40 to 80°C / -40 to 176°F	100
08401-0	Heat Stabilized	Black	-40 to 105°C / -40 to 221°F	1M
08664-0	General Purpose	Green	-40 to 85°C / -40 to 185°F	1M
08671-0	General Purpose	Blue	-40 to 85°C / -40 to 185°F	1M
08690-0	General Purpose	Red	-40 to 85°C / -40 to 185°F	1M
08782-0	General Purpose	Yellow	-40 to 85°C / -40 to 185°F	1M

Part #	Military Specifications	Panduit Cross Reference	Thomas and Betts Cross Reference
08377-0	MS-3367-5-9	PLT2I-M	TY242M
08380-0	MS-3367-5-0	PLT2I-MO	TY242MX
08385-0	MS-3367-5-9	PLT2I-C	TY5242M
08386-0	MS-3367-5-0	PLT2I-CO	TY5242MX
08401-0		PLT2I-M30
08664-0	MS-3367-5-5	PLT2I-M5
08671-0	MS-3367-5-6	PLT2I-M6
08690-0	MS-3367-5-2	PLT2I-M2
08782-0	MS-3367-5-4	PLT2I-M4

Atttribute	Specifications
Bundle Diameter	0.06" - 2.13" (1.6mm - 53.9mm)
Width	0.13" (3.3mm)
Thickness	0.054" (1.4mm)
Minimum Tensile Loop Strength	40 lbf. (178 N)
Strap Length	8.0" (203.2mm)
Quantity Per Case*	5M
