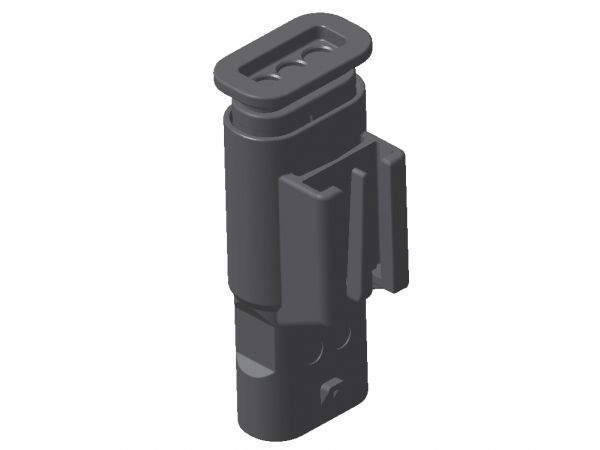

872-858-541

Connector Type:	Housing for female terminals
Terminal Type:	1.2 MM
Number of Ways:	3
Connector Positioning Assur.:	No
Protective Shroud Twisted:	No
Operating Temperature Range:	-40 °C - 150 °C
Terminal Positioning Assurance:	Yes
Terminals/Seals:	DrwngNo. Tyco: C-967067, Processing Spec. 114-18464, DrwngNo. MLK-SM: 10304894-1, DrwngNo. Seal Plug:C-967056GEN, DrwngNo. Kostal: 10129550-1, DrwngNo. MCON 1.2-LL:C-1452674 No Distribution via Hirschmann Automotive. Please contact the suppliers directly.
Pitch:	at 1.2 mm = 4 mm
Color:	Black
Coding:	A
Tightness Classification:	IPX9K
Cable Exit Angle:	180 °
Sealed:	Yes, with single wire seals
Guideline:	LV-214
Housing Material:	PA GF
