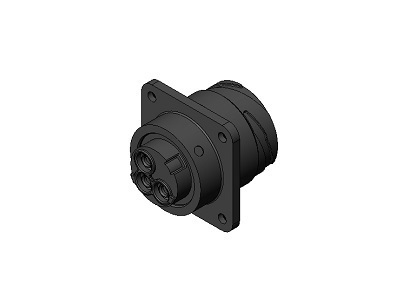

JL10-2E18-10PCE
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- 产品描述:
- JL10-2E18-10PCE JAE
可以搜到:产品、技术、资料、新闻、检测、企业、视频
TE | JL10-2E18-10PCE |
分类 | 连接器 |
类型 | 连接器 |
品牌 | 航空电子(JAE) |
项目 | JL10-2E18-10PCE |
描述 | JL10-2E18-10PCE JAE |
状态 | Active |
Features | One-touch/ Screw mating compatible circular waterproof connector, 4 pos., Receptacle, Pin (Sold separately) |
孔位数 | 4.0 |
Number of Positions | 4 pos. |
防水 | 是 |
Waterproof/ Non-waterproof | Waterproof (individually) |
Applications | Industrial machineries, servo motors, robots, semiconductor-fabrication equipment, communication devices, measuring devices, broadcasting and various other equipment |
Connector Type | Receptacle |
Connector Style | Panel mount type |
连接器类型 | 公端 |
Contact Type | Pin (Sold separately) |
Shell Size | 18 |
Finish of Contact in Connecting Area | Silver plating (Sold separately) |
Applicable Contacts | CONT-JL10-12P-C*-PKG100 |
符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
组装 | JA08A-18-10S-J1-EBH-RK JL10-6A18-10SE JL10-6A18-10SE-EB JL10-8A18-10SE-EB JL04V-8A18-10SE-EBH-R JA06A-18-10S-J1-EB-RK JL04V-6A18-10SE-EB-R JL04V-6A18-10SE-R JA06A-18-10S-J1-R |
Remarks | Without solder-cup on earth contact |
