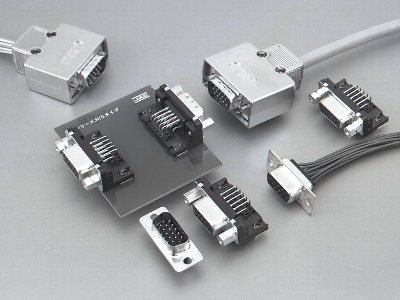

D02-M15STF-21L9-2E
- 类 型:
- 连接器
- 品 牌:
- 航空电子(JAE)
- 颜 色:
- 产品描述:
- D02-M15STF-21L9-2E JAE
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | D02-M15STF-21L9-2E |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 航空电子(JAE) |
| 项目 | D02-M15STF-21L9-2E |
| 描述 | D02-M15STF-21L9-2E JAE |
| 状态 | Active(NRND) |
| Features | High density, small size, EMI shielded, 15 pos., PCB mount type receptacle |
| 孔位数 | 15.0 |
| Number of Positions | 15 pos. |
| Rated Current (A) | 3 A |
| Connector Type | PCB mount type receptacle |
| Connector Style | Straight |
| 连接器类型 | 母端 |
| Contact Type | Socket |
| Wire Termination Style | - |
| Applicable Wire Size (AWG) | - |
| EMI Shielded | True |
| PCB Mounting Style | Soldering (Through-hole) |
| Shell Size | E |
| Shell Type | - |
| Material of Insulator | Glass filled PBT (UL94V-0, Black) |
| Contact | With contacts |
| Finish of Contact in Connecting Area | Gold plating |
| Finish of Contact in PCB Mounting Area | Tin or Tin-alloy plating |
| Mounting Method | Hook lug (Earth lug) |
| Screw Lock Assembly | |
| Existence of Ferrite | |
| Applicable Contacts | - |
| Applicable Product Part Numbers | - |
| Accessory Type | - |
| 符合危害性物質限制指令标准 | 10 substances (2011/65/EU) |
| 欧州化学物质规制标准 | 197 substances (15/01/2019) |
| 组装 | D02-M15PG-N-F0 |
| Remarks | With location-plate |
