| TE | 940118628 |
| 分类 | 连接器 |
| 类型 | 1000Mb |
| 品牌 | 莫仕(Molex) |
| Status | Active |

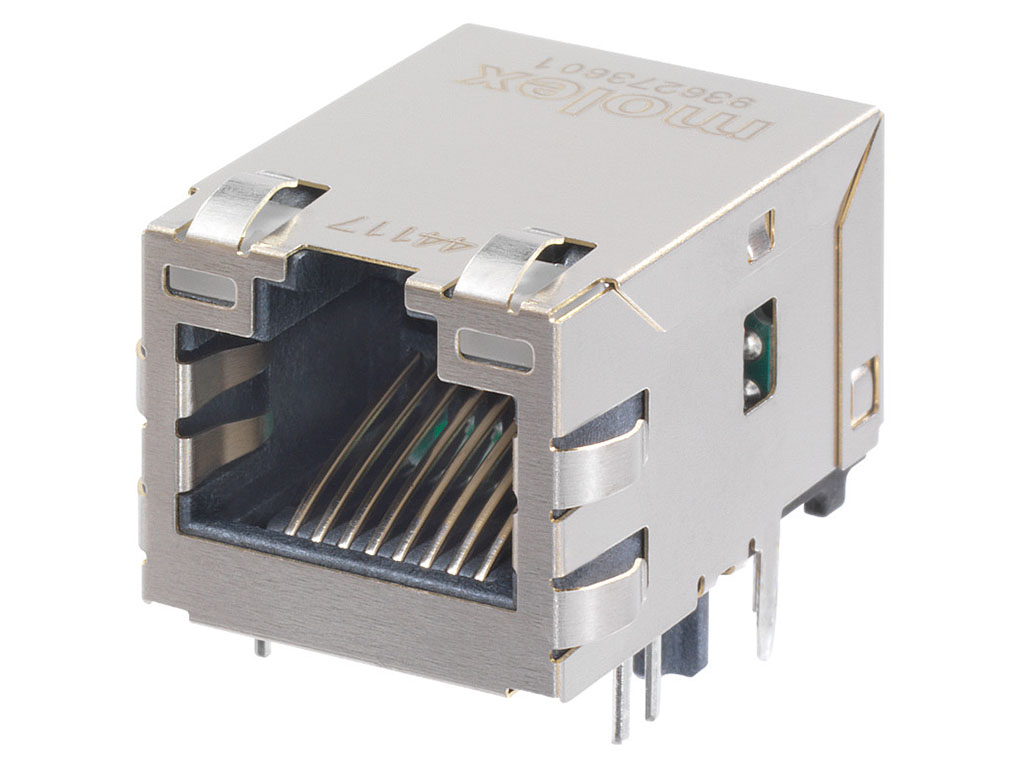

| 描述 | MXMag Gigabit Ethernet 8 Core Non-PoE Single-Port RJ45 Connector, 21.40mm Depth, 1.80mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with Green/Yellow-Green/Yellow LEDs, Extended Temperature, Pin in Paste Capable, with 2kV Shield Connection, Tray |
| Series | 94011 |
| Overview | Magnetic Jacks |
| UPC | 191128417884 |
| 颜色 | Black |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Gold over Palladium Nickel |
| Material - Plating Termination | Tin |
| Material - Resin | Liquid Crystal Polymer |
| Net Weight | 8.974/g |
| Packaging Type | Embossed Tape on Reel |
| Plating min - Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Termination Interface: Style | Through Hole |
