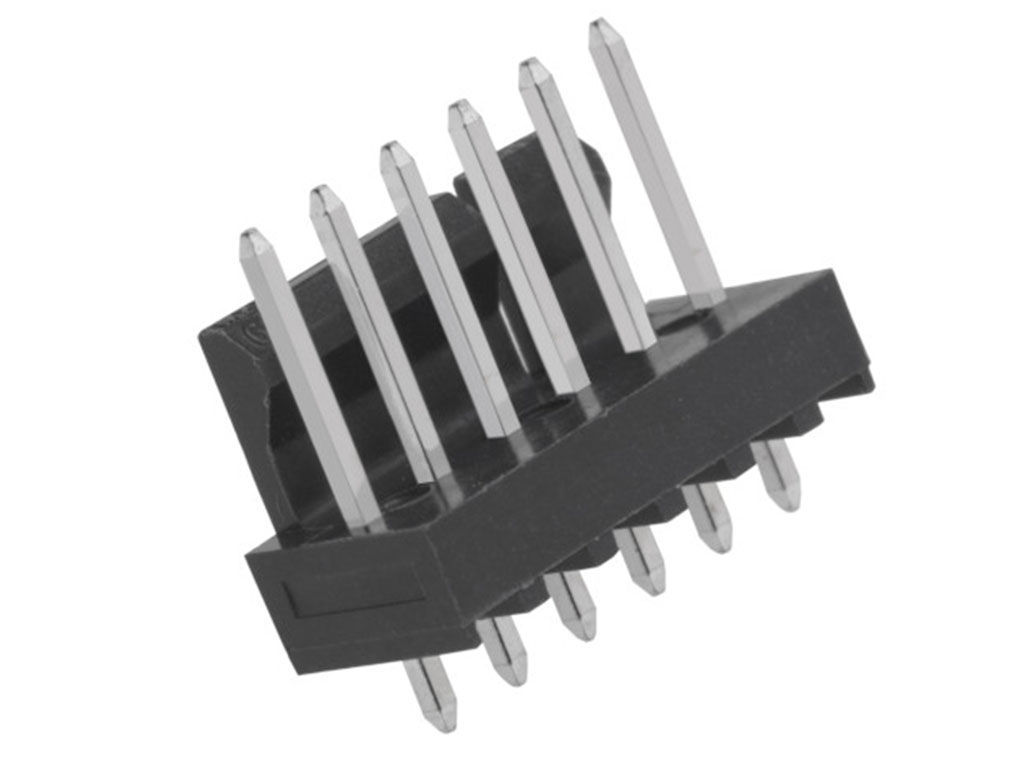

1718563006

1718563006

类  型:
连接器
品  牌:
莫仕(Molex)
颜  色:
Black
产品描述:
2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 12.95mm, Tape and Reel, 6 Circuits
TE 1718563006
分类 连接器
类型 PCB Headers
品牌 莫仕(Molex)
Status Active
描述 2.54mm Pitch, KK 254 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 12.95mm, Tape and Reel, 6 Circuits
Series 171856
Application Board-to-Board, Power, Signal, Wire-to-Board
Overview KK Interconnect Solutions
UPC 887191519890
孔位数 6.0
颜色 Black
Circuits (Loaded) 6
Lock to Mating Part Yes
Material - Metal Brass
Material - Plating Mating Matte Tin
Material - Plating Termination Matte Tin
Material - Resin High Temperature Thermoplastic
Net Weight 0.678/g
Number of Rows 1
Packaging Type Embossed Tape on Reel
Pitch - Mating Interface 2.54mm
Plating min - Mating 1.524µm
Plating min - Termination 1.524µm
Termination Interface: Style Through Hole
