2012010094
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- Blue
- 产品描述:

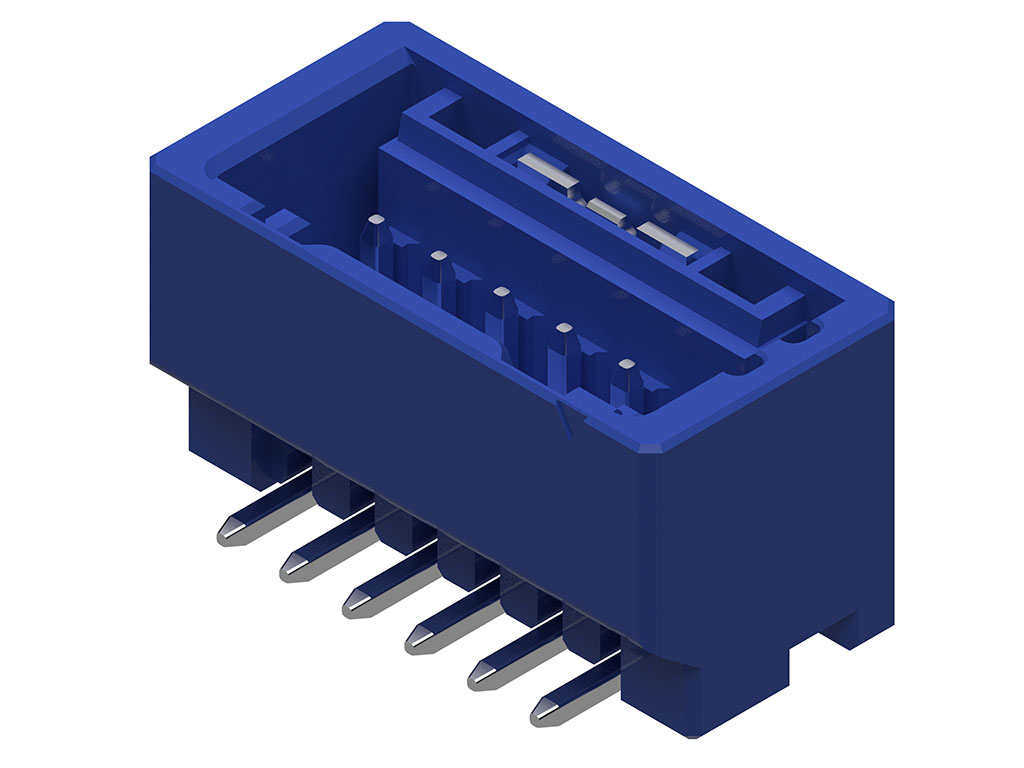

- Spot-On Wire-to-Board Header with Nail, 2.00mm Pitch, Single Row, Vertical, 9 Circuits, Matte Tin (Sn) Plating, Blue
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 2012010094 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | Spot-On Wire-to-Board Header with Nail, 2.00mm Pitch, Single Row, Vertical, 9 Circuits, Matte Tin (Sn) Plating, Blue |
| Series | 201201 |
| Application | Signal, Wire-to-Board |
| Overview | Spot-On Wire-to-Board Connector System |
| UPC | 191128253413 |
| 孔位数 | 9.0 |
| 颜色 | Blue |
| Circuits (Loaded) | 9 |
| Lock to Mating Part | Yes |
| Material - Metal | Brass |
| Material - Plating Mating | Matte Tin |
| Material - Plating Termination | Matte Tin |
| Material - Resin | Polyamide |
| Net Weight | 2283.200/mg |
| Number of Rows | 1 |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface | 2.00mm |
| Plating min - Mating | 1.000µm |
| Plating min - Termination | 1.000µm |
| Termination Interface: Style | Surface Mount |
