1715650002

1715650002

类  型:
连接器
品  牌:
莫仕(Molex)
颜  色:
Black
产品描述:

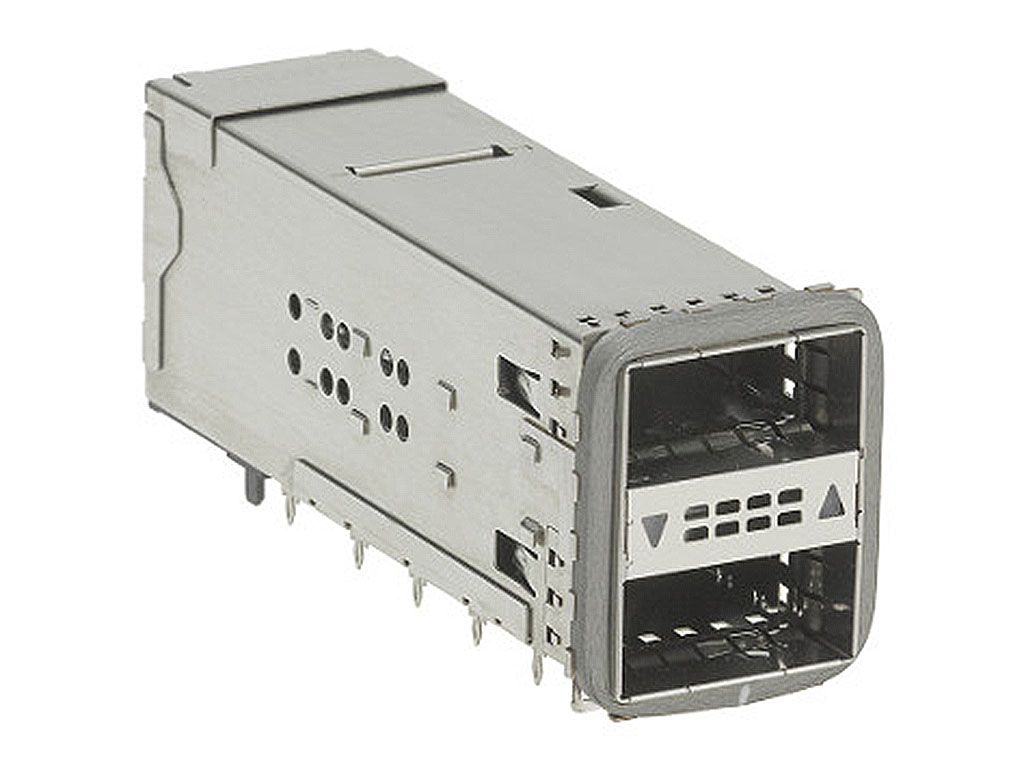

zQuad Small Form Factor Pluggable Plus (zQSFP+) Stacked Integrated 2-by-2 Connector and Cage with Elastomeric Gasket, Gold (Au) Over Nickel Plated, Up/Down Light Pipe
TE 1715650002
分类 连接器
类型 I/O Connectors
品牌 莫仕(Molex)
Status Active
描述 zQuad Small Form Factor Pluggable Plus (zQSFP+) Stacked Integrated 2-by-2 Connector and Cage with Elastomeric Gasket, Gold (Au) Over Nickel Plated, Up/Down Light Pipe
Series 171565
Application Board-to-Board, Module-to-Board, Wire-to-Board
Overview zQSFP+ and QSFP+ Integrated Product Solutions
UPC 887191096490
孔位数 152.0
颜色 Black
Circuits (Loaded) 152
Lock to Mating Part Yes
Material - Metal Copper Alloy
Material - Plating Mating Gold
Material - Plating Termination Matte Tin
Material - Resin High Temperature Thermoplastic
Net Weight 66.006/g
Number of Rows 2
Packaging Type Tray
Pitch - Mating Interface 0.80mm
Plating min - Mating 0.762µm
Plating min - Termination 0.762µm
Termination Interface: Style Through Hole - Compliant Pin
