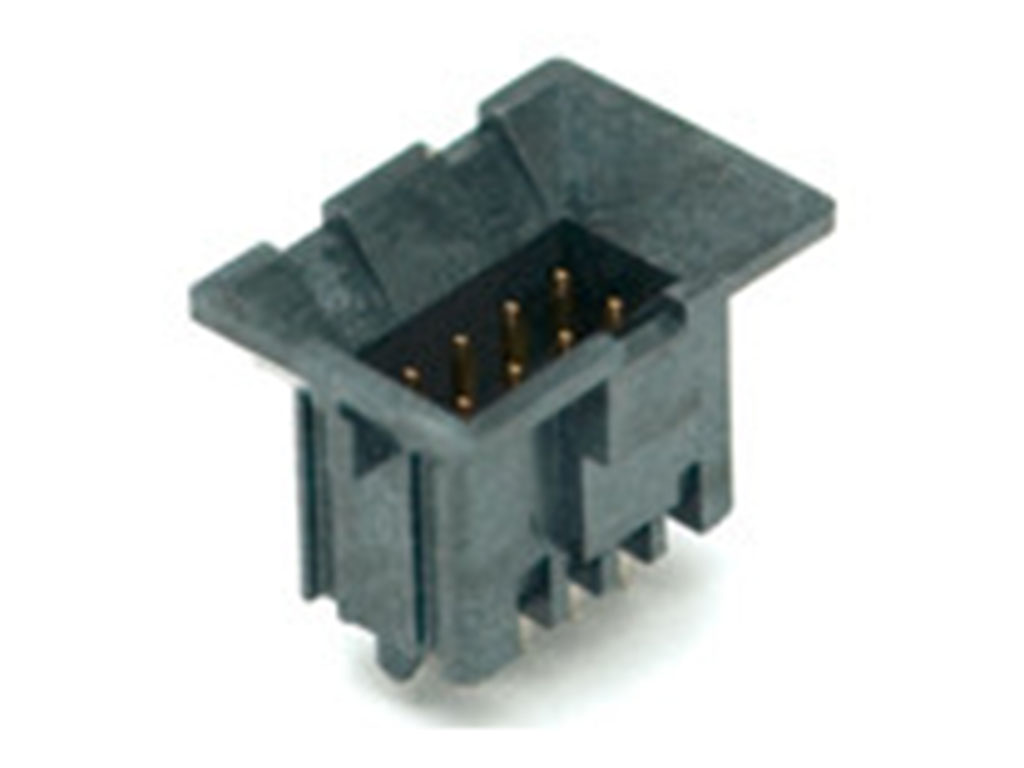

1510134312

1510134312

类  型:
连接器
品  牌:
莫仕(Molex)
颜  色:
Black
产品描述:
2.00mm Pitch, Milli-Grid BMI PCB Header, Dual Row, Vertical, Through Hole, 12 Circuits, 0.05µm Gold (Au) Plating, 3.50mm Tail Length, Tube, Lead-Free
TE 1510134312
分类 连接器
类型 PCB Headers
品牌 莫仕(Molex)
Status Active
描述 2.00mm Pitch, Milli-Grid BMI PCB Header, Dual Row, Vertical, Through Hole, 12 Circuits, 0.05µm Gold (Au) Plating, 3.50mm Tail Length, Tube, Lead-Free
Series 151013
Application Panel-to-Board, Signal, Wire-to-Board
Overview Milli-Grid Connector System
UPC 889056533379
孔位数 12.0
颜色 Black
Circuits (Loaded) 12
Lock to Mating Part None
Material - Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Matte Tin
Material - Resin Liquid Crystal Polymer
Net Weight 1.309/g
Number of Rows 2
Packaging Type Tube
Pitch - Mating Interface 2.00mm
Plating min - Mating 0.051µm
Plating min - Termination 1.270µm
Termination Interface: Style Through Hole
