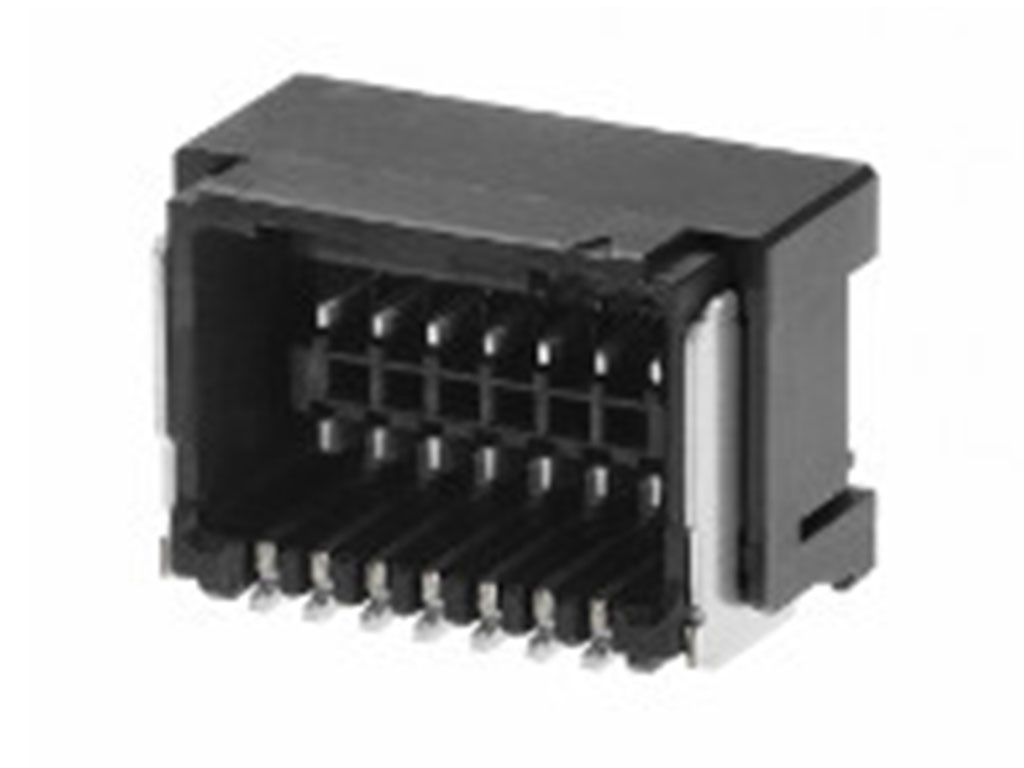

5054483691
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- Black
- 产品描述:
- 1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Right-Angle, Surface Mount, 0.10µm Gold Plating, Positive Lock, 36 Circuits, Black
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 5054483691 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | 1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Right-Angle, Surface Mount, 0.10µm Gold Plating, Positive Lock, 36 Circuits, Black |
| Series | 505448 |
| Application | Signal, Wire-to-Board |
| Overview | Micro-Lock Plus Wire-to-Board Connector System |
| UPC | 193264149049 |
| 孔位数 | 36.0 |
| 颜色 | Black |
| Circuits (Loaded) | 36 |
| Lock to Mating Part | Yes |
| Material - Metal | Brass |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Gold |
| Material - Resin | Polyamide |
| Net Weight | 2784.900/mg |
| Number of Rows | 2 |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface | 1.25mm |
| Plating min - Mating | 0.102µm |
| Termination Interface: Style | Surface Mount |
