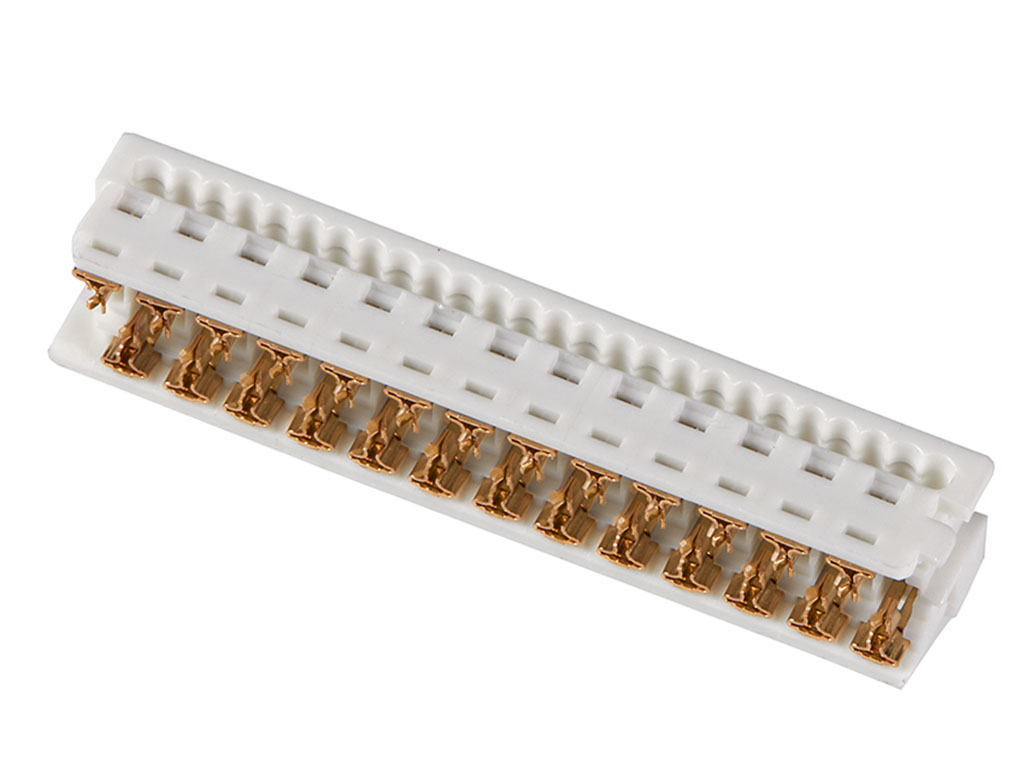

903273326
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- White
- 产品描述:
- Picoflex PF-50, Low Profile, IDT Receptacle, 26 Circuits, White, Palladium Nickel with Gold (Au) Flash Plated, Bag
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 903273326 |
| 分类 | 连接器 |
| 类型 | Ribbon Cable / Wire Trap Connectors |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | Picoflex PF-50, Low Profile, IDT Receptacle, 26 Circuits, White, Palladium Nickel with Gold (Au) Flash Plated, Bag |
| Series | 90327 |
| Overview | Picoflex Ribbon-Cable Connectors |
| UPC | 800753669598 |
| 孔位数 | 26.0 |
| 颜色 | White |
| Circuits (Loaded) | 26 |
| Lock to Mating Part | Yes |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Palladium Nickel |
| Material - Plating Termination | Gold |
| Material - Resin | Polyester |
| Net Weight | 3.903/g |
| Number of Rows | 2 |
| Packaging Type | Bag |
| Pitch - Mating Interface | 1.27mm |
| Termination Interface: Style | IDT or Pierce |
| Wire Insulation Diameter | 1.00mm max. |
| Wire Size AWG | 26, 28 |
| Wire/Cable Type | Ribbon Cable |
