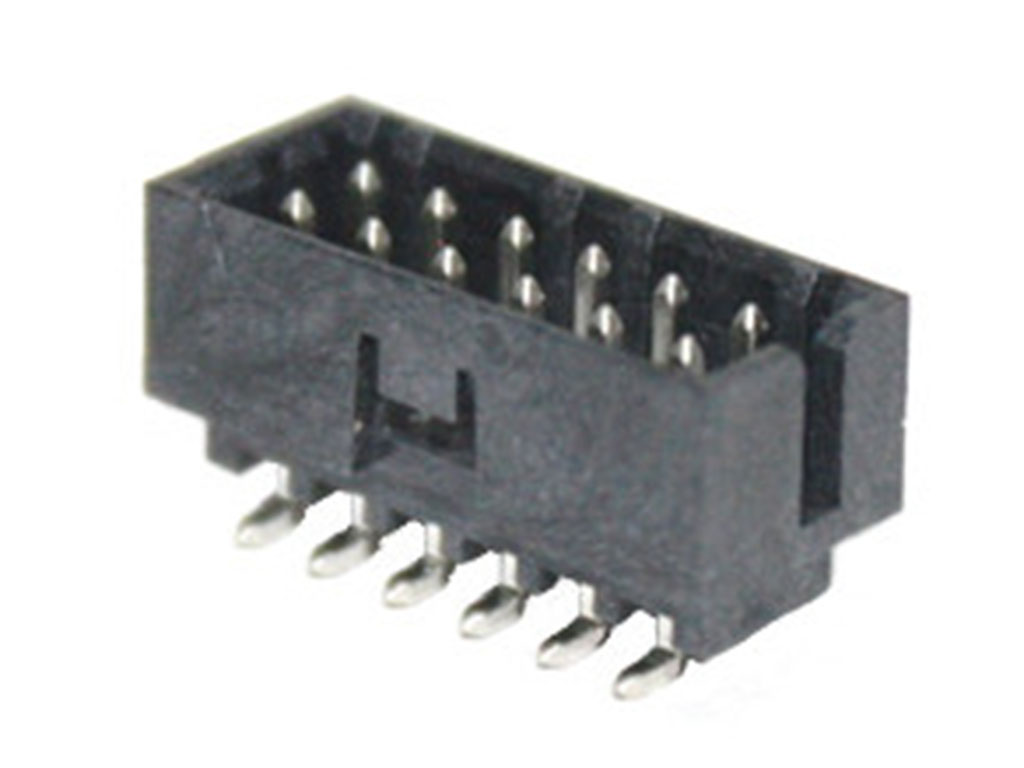

1511181496
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- Black
- 产品描述:
- 2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Surface Mount, 2.00µm Tin (Sn) Plating, with Peg, with Pick and Place Cap, 46 Circuits, Glow-Wire Capable, Tube
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 1511181496 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | 2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Surface Mount, 2.00µm Tin (Sn) Plating, with Peg, with Pick and Place Cap, 46 Circuits, Glow-Wire Capable, Tube |
| Series | 151118 |
| Application | Board-to-Board, Signal, Wire-to-Board |
| Overview | Milli-Grid Connector System |
| UPC | 889056794985 |
| 孔位数 | 46.0 |
| 颜色 | Black |
| Circuits (Loaded) | 46 |
| Lock to Mating Part | Yes |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Material - Resin | Liquid Crystal Polymer |
| Net Weight | 1.958/g |
| Number of Rows | 2 |
| Packaging Type | Tube |
| Pitch - Mating Interface | 2.00mm |
| Plating min - Mating | 2.000µm |
| Plating min - Termination | 2.000µm |
| Termination Interface: Style | Surface Mount |
