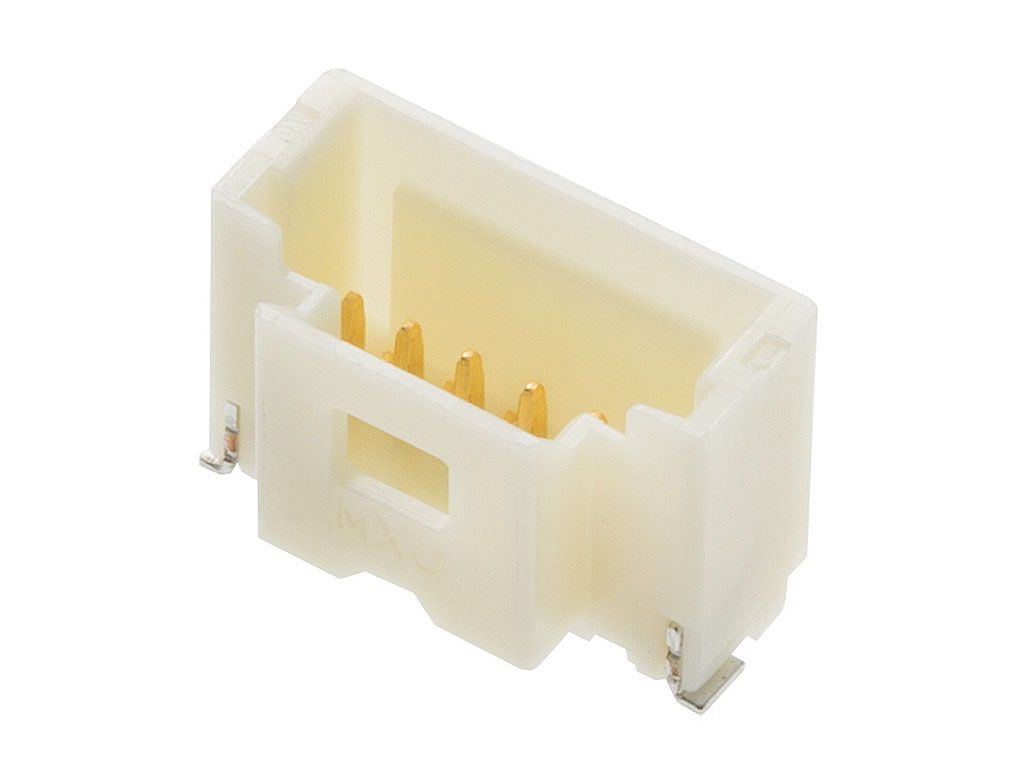

5044491107
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- Natural
- 产品描述:
- 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.10µm Gold Plated, Inner Positive Lock, 11 Circuits, Natural
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 5044491107 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.10µm Gold Plated, Inner Positive Lock, 11 Circuits, Natural |
| Series | 504449 |
| Application | Signal, Wire-to-Board |
| Overview | Pico-Clasp Wire-to-Board Connectors |
| UPC | 887191268125 |
| 孔位数 | 11.0 |
| 颜色 | Natural |
| Circuits (Loaded) | 11 |
| Lock to Mating Part | Yes |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Gold |
| Material - Resin | Polyamide |
| Net Weight | 224.200/mg |
| Number of Rows | 1 |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface | 1.00mm |
| Plating min - Mating | 0.102µm |
| Plating min - Termination | 0.102µm |
| Termination Interface: Style | Surface Mount |
