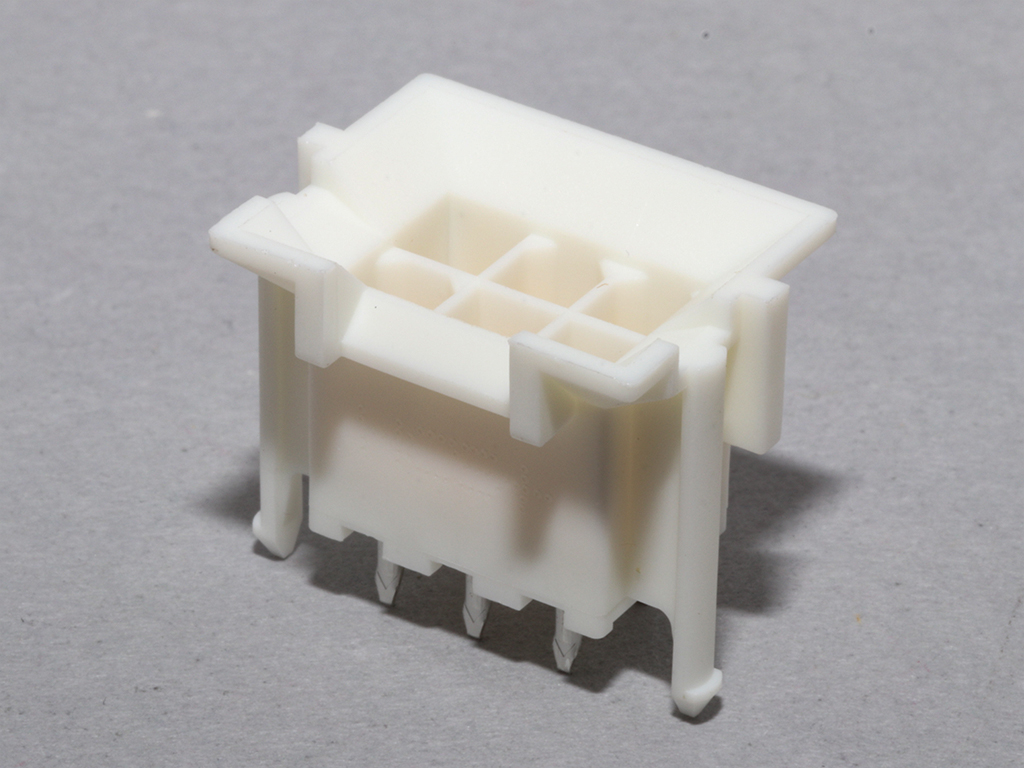

| TE | 460110603 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | Mini-Fit Plus Header, 4.20mm Pitch, Dual Row, Vertical, Blind Mating, 6 Circuits, with Snap-in Plastic Peg PCB Lock, PA Polyamide Nylon 6/6, UL 94V-0, 0.76µm Gold (Au) Selective Plating, Halogen Free |
| Series | 46011 |
| Application | Board-to-Board, Power, Wire-to-Board |
| Overview | Mini-Fit Family Power Connectors |
| UPC | 822350726412 |
| 孔位数 | 6.0 |
| 颜色 | Natural |
| Circuits (Loaded) | 6 |
| Lock to Mating Part | Yes |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin |
| Material - Resin | Nylon |
| Net Weight | 2.026/g |
| Number of Rows | 2 |
| Packaging Type | Tray |
| Pitch - Mating Interface | 4.20mm |
| Plating min - Mating | 0.762µm |
| Plating min - Termination | 2.540µm |
| Termination Interface: Style | Through Hole |
