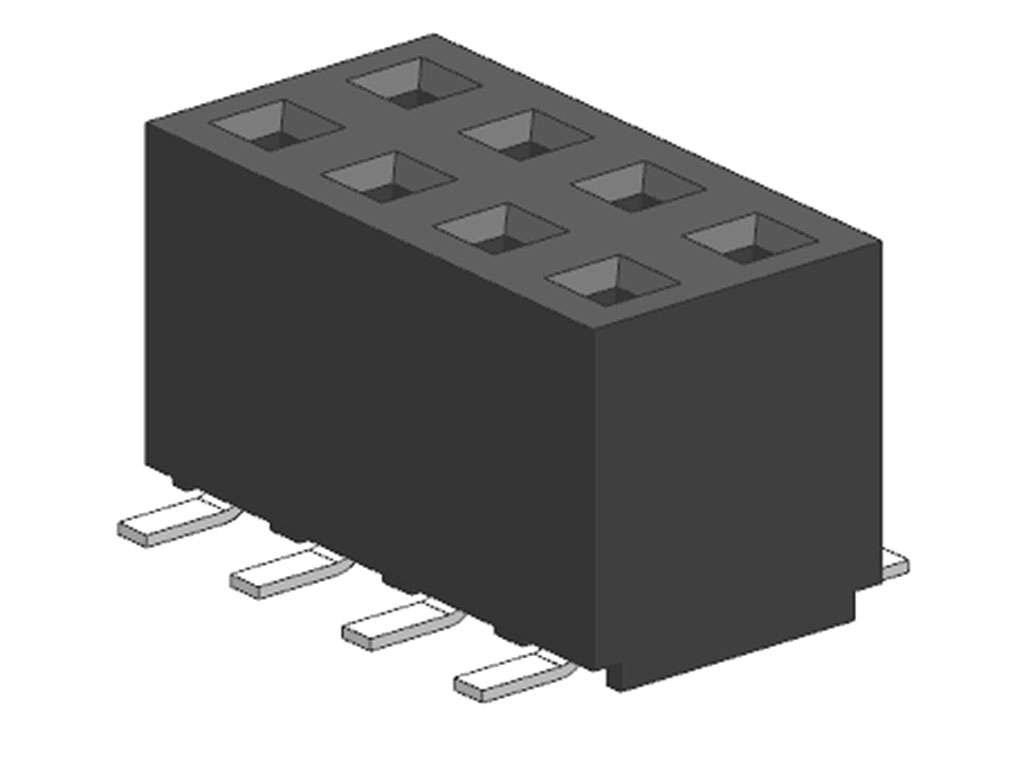

873400875

873400875

类  型:
连接器
品  牌:
莫仕(Molex)
颜  色:
Black
产品描述:
2.00mm Pitch Milli-Grid Receptacle, Surface Mount (Very Low Profile), Top Entry, without Locating Pegs, with Pick-and-Place Cap, 0.38µm Gold (Au) Plating, 8 Circuits, Lead-Free, Tube
TE 873400875
分类 连接器
类型 PCB Receptacles
品牌 莫仕(Molex)
Status Active
描述 2.00mm Pitch Milli-Grid Receptacle, Surface Mount (Very Low Profile), Top Entry, without Locating Pegs, with Pick-and-Place Cap, 0.38µm Gold (Au) Plating, 8 Circuits, Lead-Free, Tube
Series 87340
Application Board-to-Board, Signal
Overview Milli-Grid Connector System
UPC 822348473083
孔位数 8.0
颜色 Black
Circuits (Loaded) 8
Lock to Mating Part Yes
Material - Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Resin High Temperature Thermoplastic
Net Weight 0.099/g
Number of Rows 2
Packaging Type Tube
Pitch - Mating Interface 2.00mm
Plating min - Mating 0.381µm
Plating min - Termination 1.905µm
Termination Interface: Style Surface Mount
