530481560
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- Natural
- 产品描述:

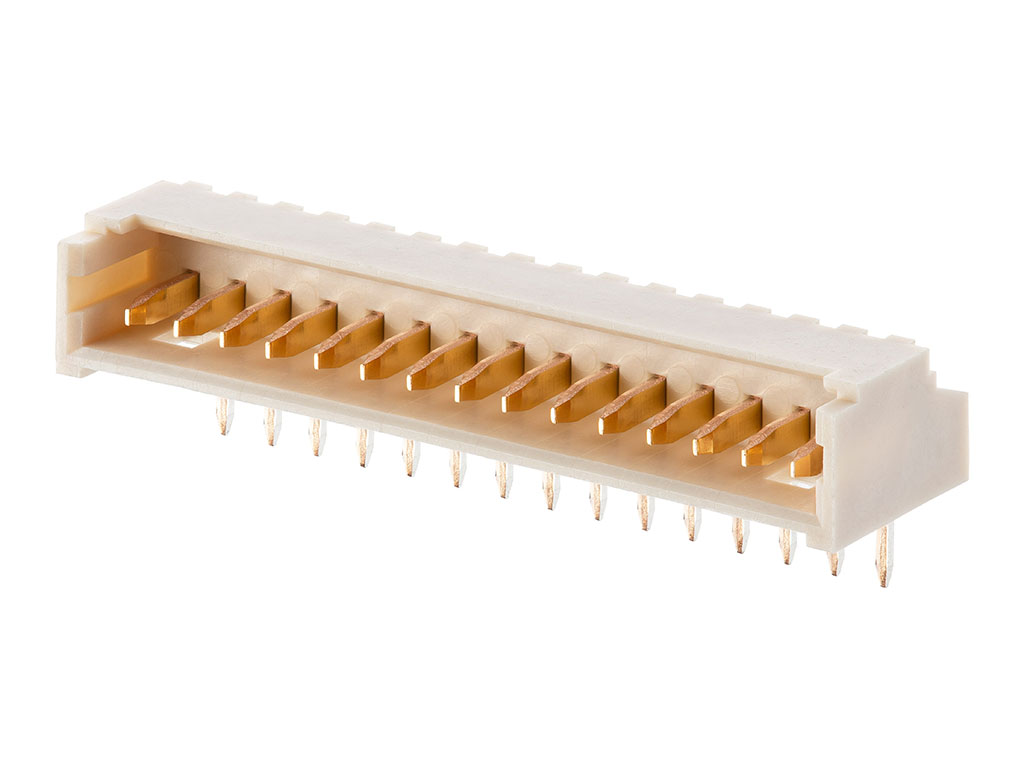

- 1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Through Hole, Gold Flash Plating, Friction Lock, 15 Circuits, Tray, 2.30mm PC Tail Length
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 530481560 |
| 分类 | 连接器 |
| 类型 | PCB Headers |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Through Hole, Gold Flash Plating, Friction Lock, 15 Circuits, Tray, 2.30mm PC Tail Length |
| Series | 53048 |
| Application | Signal, Wire-to-Board |
| Overview | PicoBlade Connector System |
| UPC | 193264604357 |
| 孔位数 | 15.0 |
| 颜色 | Natural |
| Circuits (Loaded) | 15 |
| Lock to Mating Part | Yes |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Gold |
| Material - Resin | Nylon |
| Net Weight | 337.130/mg |
| Number of Rows | 1 |
| Packaging Type | Tray |
| Pitch - Mating Interface | 1.25mm |
| Termination Interface: Style | Through Hole |
