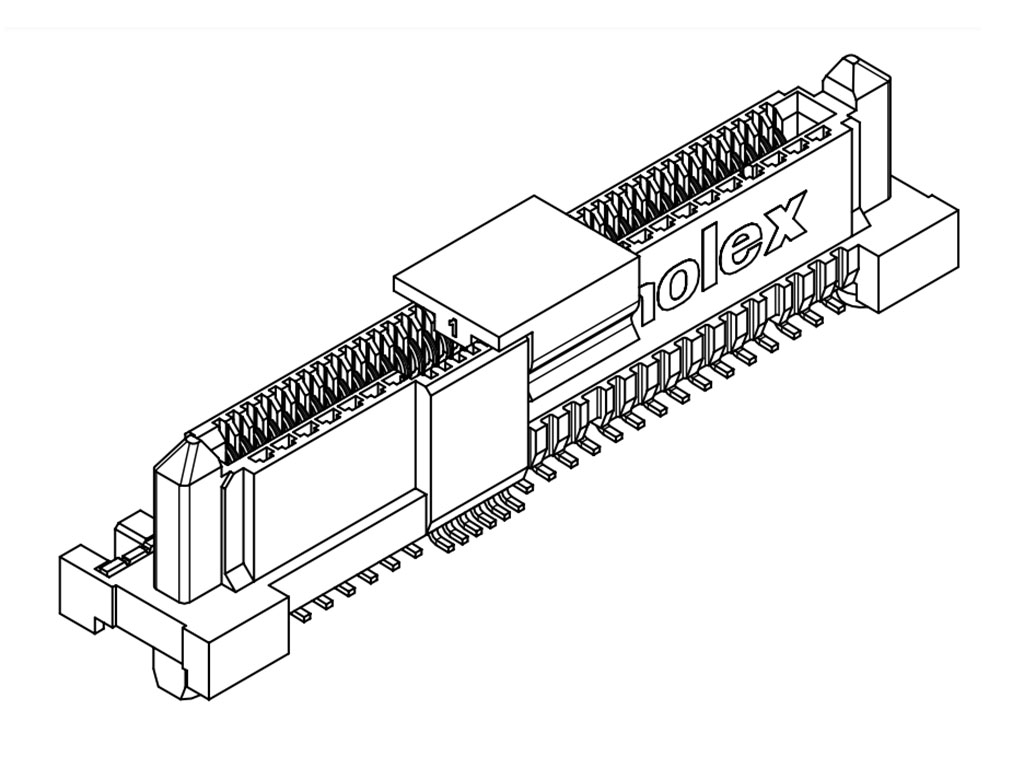

| TE | 2079730006 |
| 分类 | 连接器 |
| 类型 | I/O Connectors |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | 1.27mm Signal Pitch, 0.80mm Signal Pitch, 1.27mm Power Pitch SAS-4/PCIe-4 Receptacle, Vertical, Surface Mount, with Solder Tab, 8.15mm Height, 1.05mm Peg Length, 1.00mm Minimum PCB Thickness, 68 Circuits, with Cap, Embossed Tape and Reel, Lead-Free |
| Series | 207973 |
| Application | Board-to-Board |
| Overview | Serial Attached SCSI (SAS) Connectors |
| UPC | 191130504114 |
| 孔位数 | 68.0 |
| 颜色 | Black |
| Circuits (Loaded) | 68 |
| 连接器类型 | 母端 |
| Gender | Female |
| Lock to Mating Part | None |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin |
| Material - Resin | Liquid Crystal Polymer |
| Net Weight | 1.900/g |
| Number of Rows | 2 |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface | 0.80mm, 1.27mm |
| Plating min - Mating | 0.762µm |
| Plating min - Termination | 2.540µm |
| Termination Interface: Style | Surface Mount |
