2119663104
- 类 型:
- 连接器
- 品 牌:
- 莫仕(Molex)
- 颜 色:
- Black
- 产品描述:

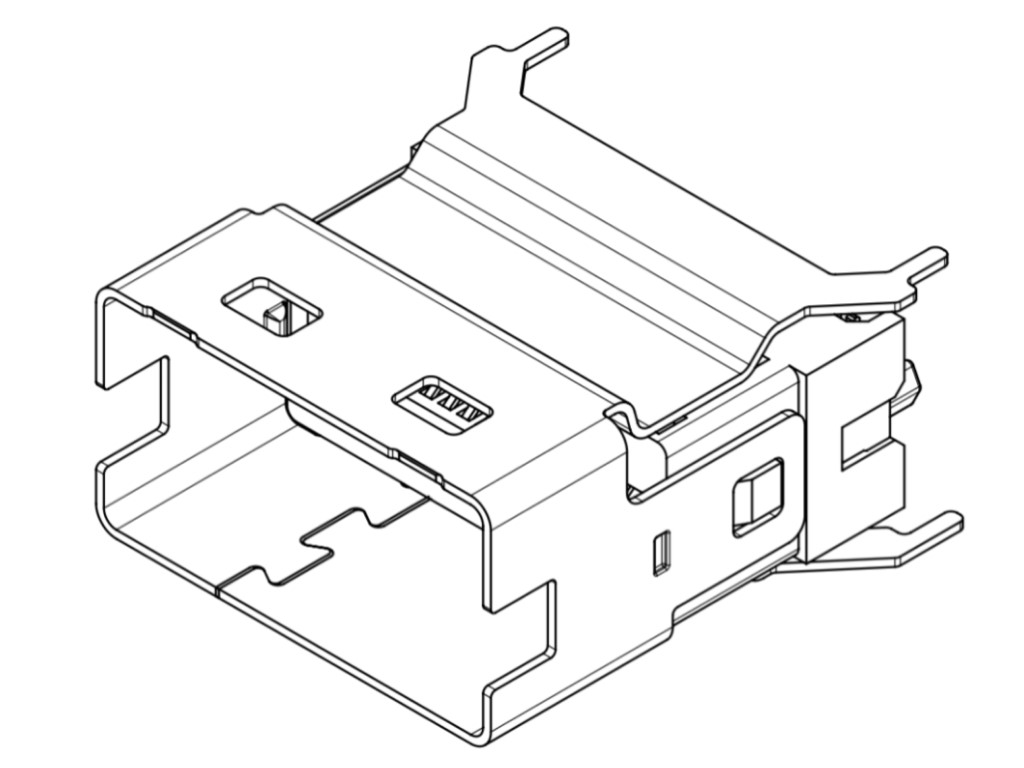

- SlimSAS Receptacle, Vertical, 4x (38 Circuits), 100 Ohm, 0.75um Gold (Au) Plating, 4.20mm Shell Tab Length, Black
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 2119663104 |
| 分类 | 连接器 |
| 类型 | I/O Connectors |
| 品牌 | 莫仕(Molex) |
| Status | Active |
| 描述 | SlimSAS Receptacle, Vertical, 4x (38 Circuits), 100 Ohm, 0.75um Gold (Au) Plating, 4.20mm Shell Tab Length, Black |
| Series | 211966 |
| Application | Wire-to-Board |
| Overview | SlimSAS Connectors and Cable Assemblies |
| UPC | 193264512058 |
| 孔位数 | 38.0 |
| 颜色 | Black |
| Circuits (Loaded) | 38 |
| 连接器类型 | 母端 |
| Gender | Female |
| Lock to Mating Part | Yes |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Matte Tin |
| Material - Resin | Liquid Crystal Polymer |
| Number of Rows | 2 |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface | 0.60mm |
| Plating min - Mating | 0.750µm |
| Termination Interface: Style | Surface Mount |
