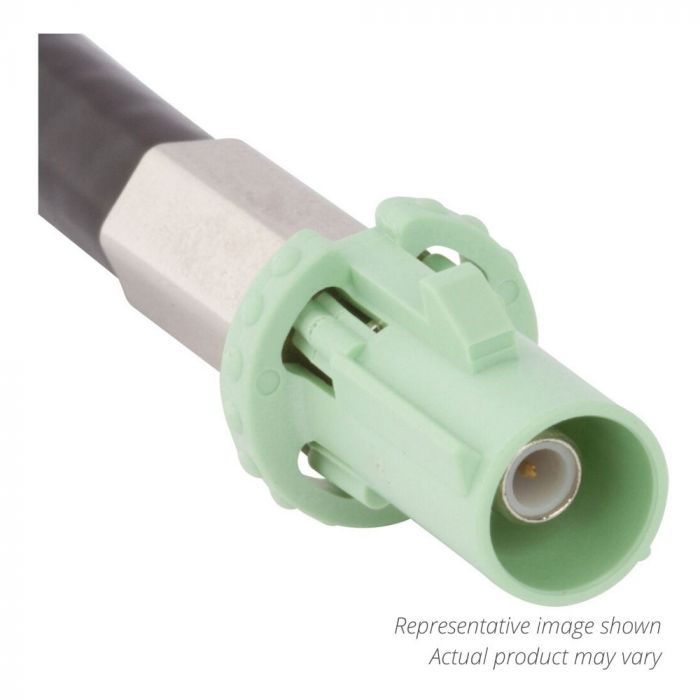

2FA1-NASP-C01W1

产品描述：: RF Connector FAKRA Generation 2 Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm A Key Code

TE	2FA1-NASP-C01W1
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	Nickel
描述	RF Connector FAKRA Generation 2 Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm A Key Code
电路应用	Fakra
Body Material	Zinc Diecast
Cable Type (Terminates to)	RG-174, RG-188, RG-316, Times LMR-100A, Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Times RG-174LL, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Leoni DACAR 462, Leoni DACAR 462-2
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Push-on
Export Control Classification Number	EAR99
FAKRA Generation	2.0
FAKRA Keycode	A - Jet Black
Frequency (Max GHz)	4.0
连接器类型	公端
Gender	Plug
防水	否
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	165.0
Temp (Min Degrees Celsius)	-65.0
Termination Style	Cable - Crimp
Thread Direction	Standard
