132146

TE	132146
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	Gold

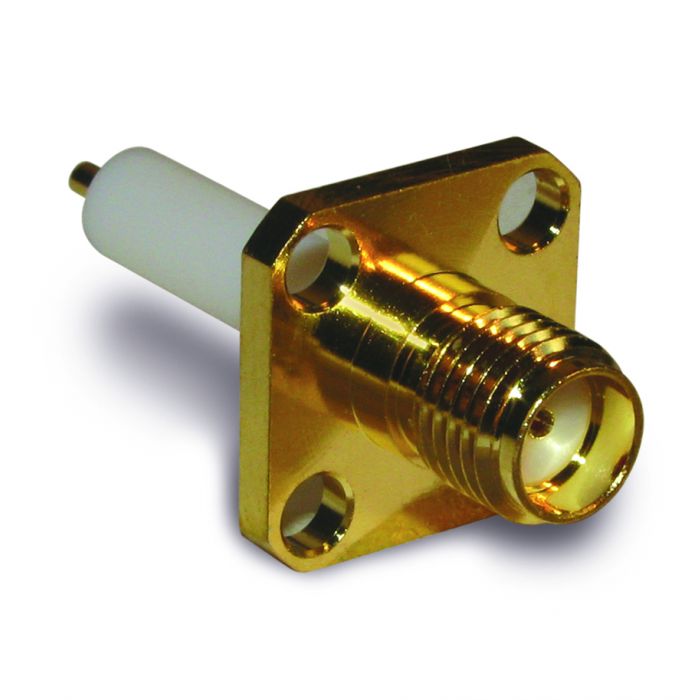

描述	RF Connector SMA Panel Mount Jack 4-Hole Flange Round Post 50 Ohm
电路应用	Fakra
Body Material	Brass
Cable Type (Terminates to)	Not Applicable
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Export Control Classification Number	EAR99
Frequency (Max GHz)	12.4
连接器类型	母端
Gender	Jack
防水	否
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	4-Hole Flange
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	165.0
Temp (Min Degrees Celsius)	-65.0
Termination Style	Round Post
Thread Direction	Standard
Extended Dielectric Length	0.591 Inches (15.01 mm)
Post Length	0.705 Inches (17.91 mm)
Flange Size	0.500 Inches (12.70 mm) Square
