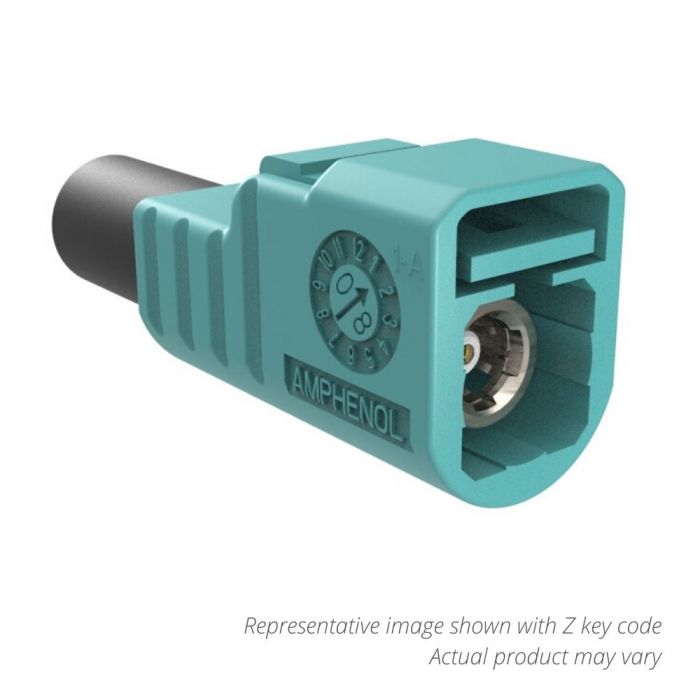

3FA1-NDSJ-C04W0

产品描述：: RF Connector FAKRA Generation 3 Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm D Key Code

TE	3FA1-NDSJ-C04W0
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	Tin
描述	RF Connector FAKRA Generation 3 Straight Crimp Jack RG-58 RG-141 Times LMR-195 50 Ohm D Key Code
电路应用	Fakra
Body Material	Zinc Diecast
Cable Type (Terminates to)	RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Push-on
Export Control Classification Number	EAR99
FAKRA Generation	3.0
FAKRA Keycode	D - Claret Violet
Frequency (Max GHz)	3.0
连接器类型	母端
Gender	Jack
防水	否
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	165.0
Temp (Min Degrees Celsius)	-65.0
Termination Style	Cable - Crimp
Thread Direction	Standard
