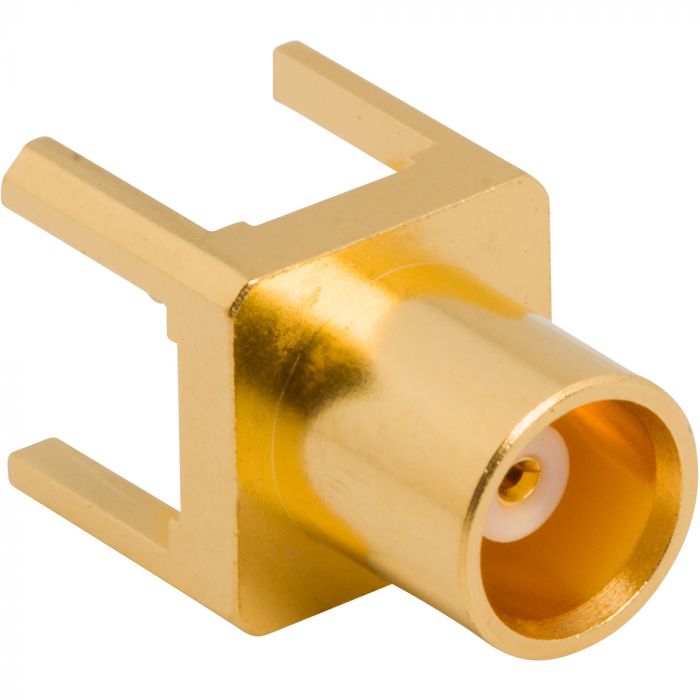

919-NM109J-51P

919-NM109J-51P

类  型:
连接器
品  牌:
安费诺(Amphenol-RF)
颜  色:
产品描述:
RF Connector MCX Straight PCB Jack Through Hole 50 Ohm Non-Magnetic
TE 919-NM109J-51P
分类 连接器
类型 连接器
品牌 安费诺(Amphenol-RF)
Body Finish Gold
描述 RF Connector MCX Straight PCB Jack Through Hole 50 Ohm Non-Magnetic
电路应用 Fakra
Body Material Beryllium Copper
Cable Type (Terminates to) Not Applicable
Contact Finish Gold
Contact Material Beryllium Copper
Contact Termination Solder
Coupling Mechanism Push-on
Export Control Classification Number EAR99
Frequency (Max GHz) 6.0
连接器类型 母端
Gender Jack
防水 否
IP Rating Not Rated
Impedance (Ohms) 50
Insulator Material PTFE
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic Yes
Orientation Straight
Panel Mounting Feature Not Applicable
Ports 1 (Single Port)
Size Category Microminiature
Temp (Max Degrees Celsius) 165.0
Temp (Min Degrees Celsius) -65.0
Termination Style PCB - Through Hole
