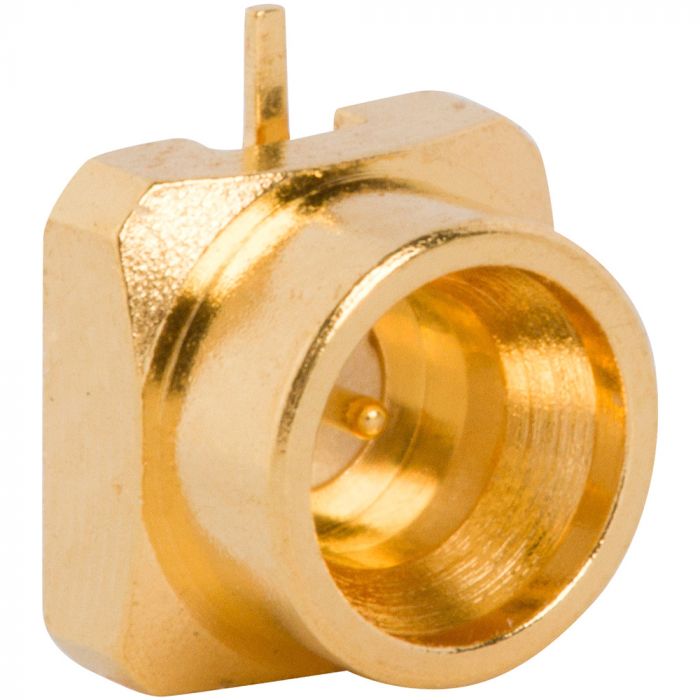

925-143J-51P

925-143J-51P

类  型:
连接器
品  牌:
安费诺(Amphenol-RF)
颜  色:
产品描述:
RF Connector SMPM Straight PCB Full Detent Jack Surface Mount 50 Ohm
TE 925-143J-51P
分类 连接器
类型 连接器
品牌 安费诺(Amphenol-RF)
Body Finish Gold
描述 RF Connector SMPM Straight PCB Full Detent Jack Surface Mount 50 Ohm
电路应用 Fakra
Body Material Brass
Cable Type (Terminates to) Not Applicable
Contact Finish Gold
Contact Material Brass
Contact Termination Solder
Coupling Mechanism Push-on
Export Control Classification Number EAR99
Frequency (Max GHz) 10.0
连接器类型 母端
Gender Jack
防水 否
IP Rating Not Rated
Impedance (Ohms) 50
Insulator Material LCP
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic No
Orientation Straight
Panel Mounting Feature Not Applicable
Ports 1 (Single Port)
Size Category Microminiature
Temp (Max Degrees Celsius) 165.0
Temp (Min Degrees Celsius) -65.0
Termination Style PCB - Surface Mount
Detent Type Full Detent
