当前位置: 首页>产品>925-144J-51PT

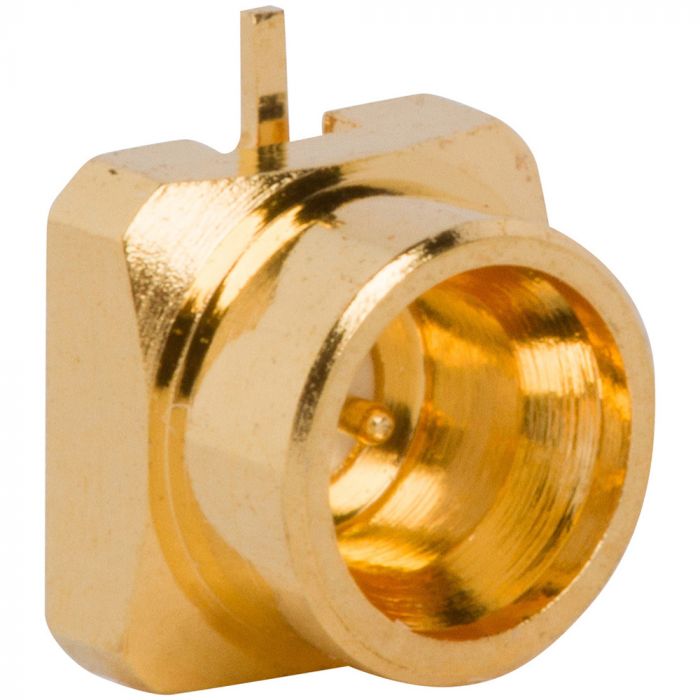

925-144J-51PT

925-144J-51PT

类  型:
连接器
品  牌:
安费诺(Amphenol-RF)
颜  色:
产品描述:
RF Connector SMPM Straight PCB Smooth Bore Jack Surface Mount 50 Ohm Tape and Reel
TE 925-144J-51PT
分类 连接器
类型 连接器
品牌 安费诺(Amphenol-RF)
Body Finish Gold
描述 RF Connector SMPM Straight PCB Smooth Bore Jack Surface Mount 50 Ohm Tape and Reel
电路应用 Fakra
Body Material Brass
Cable Type (Terminates to) Not Applicable
Contact Finish Gold
Contact Material Brass
Contact Termination Solder
Coupling Mechanism Push-on
Export Control Classification Number EAR99
Frequency (Max GHz) 10.0
连接器类型 母端
Gender Jack
防水 否
IP Rating Not Rated
Impedance (Ohms) 50
Insulator Material LCP
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic No
Orientation Straight
Panel Mounting Feature Not Applicable
Ports 1 (Single Port)
Size Category Microminiature
Temp (Max Degrees Celsius) 165.0
Temp (Min Degrees Celsius) -65.0
Termination Style PCB - Surface Mount
Detent Type Smooth Bore
