000-27025

000-27025

类  型:
连接器
品  牌:
安费诺(Amphenol-RF)
颜  色:
产品描述:

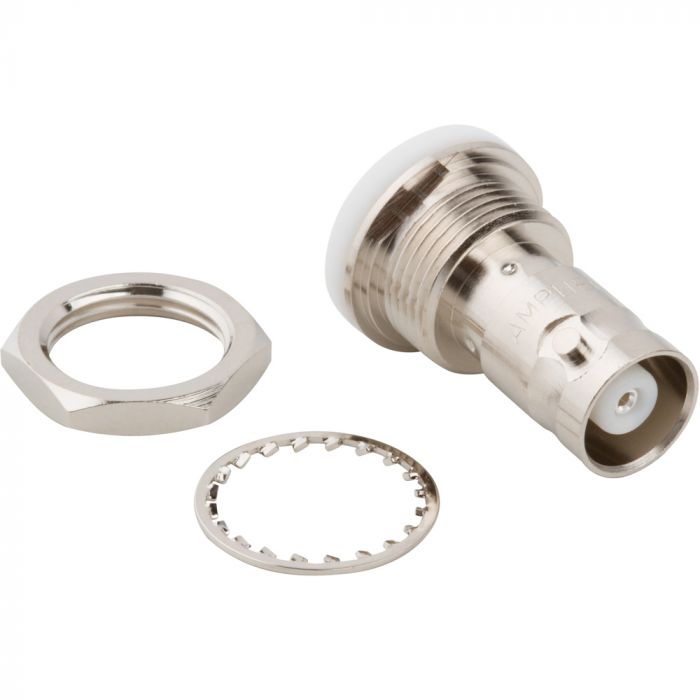

RF Connector MHV Straight Jack Bulkhead Round Post Non-Constant Impedance
TE 000-27025
分类 连接器
类型 连接器
品牌 安费诺(Amphenol-RF)
Body Finish Nickel
描述 RF Connector MHV Straight Jack Bulkhead Round Post Non-Constant Impedance
电路应用 Fakra
Body Material Brass
Cable Type (Terminates to) Not Applicable
Contact Finish Silver
Contact Material Brass
Contact Termination Solder
Coupling Mechanism Bayonet
Export Control Classification Number EAR99
连接器类型 母端
Gender Jack
防水 否
IP Rating Not Rated
Impedance (Ohms) Non-Constant
Insulator Material PTFE
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic No
Orientation Straight
Panel Mounting Feature Bulkhead - Rear Mount
Ports 1 (Single Port)
Size Category Subminiature
Temp (Max Degrees Celsius) 165.0
Temp (Min Degrees Celsius) -65.0
Termination Style Round Post
Thread Direction Standard
Alias 27025
Post Length 0.093 Inches (2.36 mm)
