000-29100

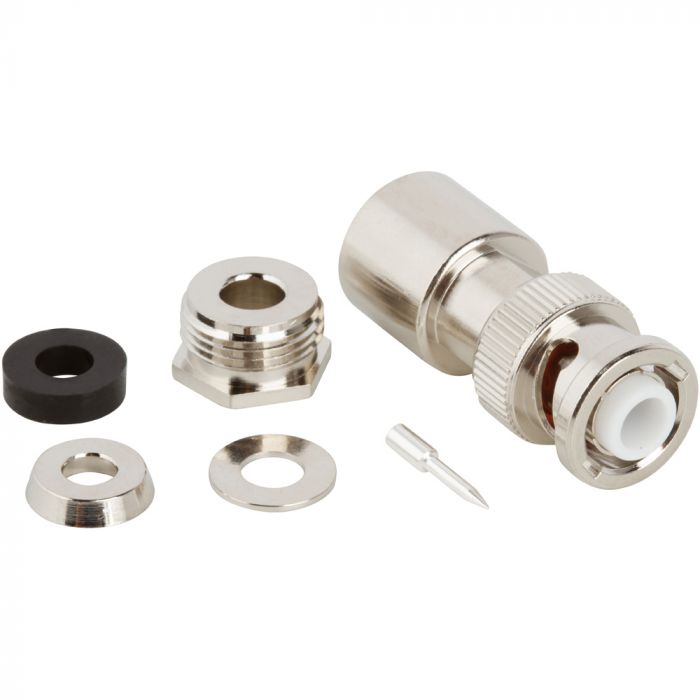

产品描述：: RF Connector MHV Straight Clamp Plug RG-58 RG-141 Times LMR-195 Non-Constant Impedance

TE	000-29100
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	Nickel
描述	RF Connector MHV Straight Clamp Plug RG-58 RG-141 Times LMR-195 Non-Constant Impedance
电路应用	Fakra
Body Material	Brass
Cable Type (Terminates to)	RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Bayonet
Export Control Classification Number	EAR99
连接器类型	公端
Gender	Plug
防水	否
IP Rating	Not Rated
Impedance (Ohms)	Non-Constant
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	165.0
Temp (Min Degrees Celsius)	-65.0
Termination Style	Cable - Clamp
Thread Direction	Standard
Alias	29100
